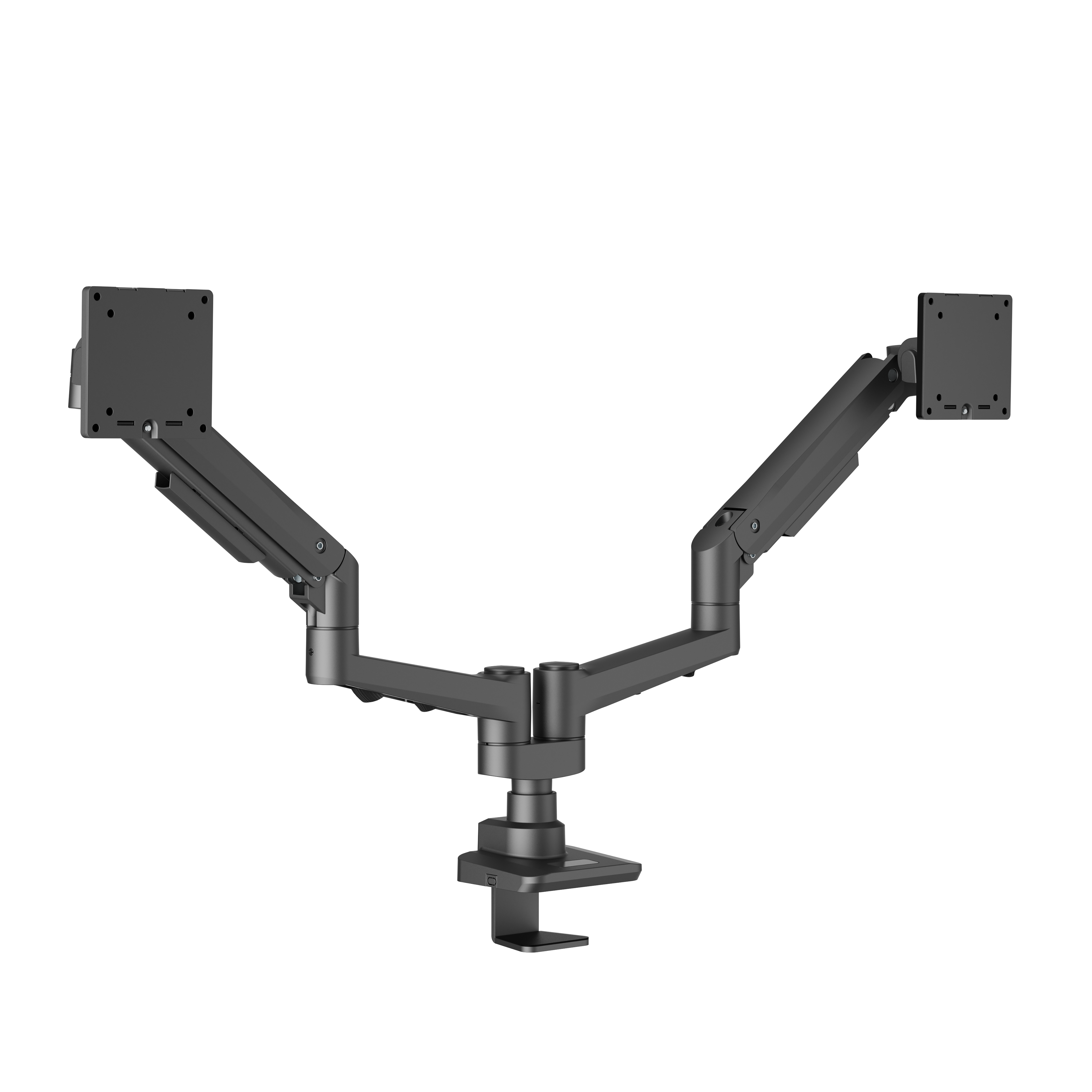

Edbak DMV02 Desktop Monitor Mount
Product code:• Screen tilting adjustment by -20° to +50°
• 90° right-left screen position adjustment
• Height adjustment
• 2 types of desk fastenings included
• Cable management system
• Modern design
• Simple and quick installation
Description
DMV02 with double arms with gas spring for two 19″-35″ monitors was designed for users who value ergonomics while working at a computer. The full monitor height adjustment combined with 360°arm rotation gives the possibility of adjusting the screens to individual user needs and provides excellent comfort during office work. Two types of desk mounts allow for any assembly, increasing its functionality. DMV02 is the perfect choice for people working with monitors all day long, e.g. in industry, transport or monitoring
centres. This mount is a perfect choice for users who value both functionality and aesthetics.
Additional information
| Index | DMV01 |
| Category | Desktop Monitor Mounts |
| Product group | Display Mounts |
| Color | Black |
| Warranty | Limited 5-years |
| Number of screens | 2 |
| Minimum screen size | 19″ |
| Maximum screen size | 35″ |
| Forward tilting | -20° |
| Forward tilting | +50° |
| Arm rotation | 360° |
| Left-right rotation | 90° |
| Maximum load | 20kg |
| VESA Mounting Compatibility | 75×75 up to 100×100 |
| Product dimensions | W: 247 mm D: 116 mm H: 186 mm |
| Product weight | 6,41 kg (14,13 lb) |
| Max. distance from mounting surface | 450 mm (17,71") |
| Min. distance from mounting surface | 181 mm (7,12") |
| Max.mounting pattern | 100 mm x 100 mm |
| Min. mounting pattern | 75 mm x 75 mm |
