Edbak DMV01 Desktop Monitor Mount
Product code:- Screen tilting adjustment by -20° to +50°
- 90° right-left screen position adjustment
- Height adjustment
- 2 types of desk fastenings included
- Cable management system
- Modern design
- Simple and quick installation
Description

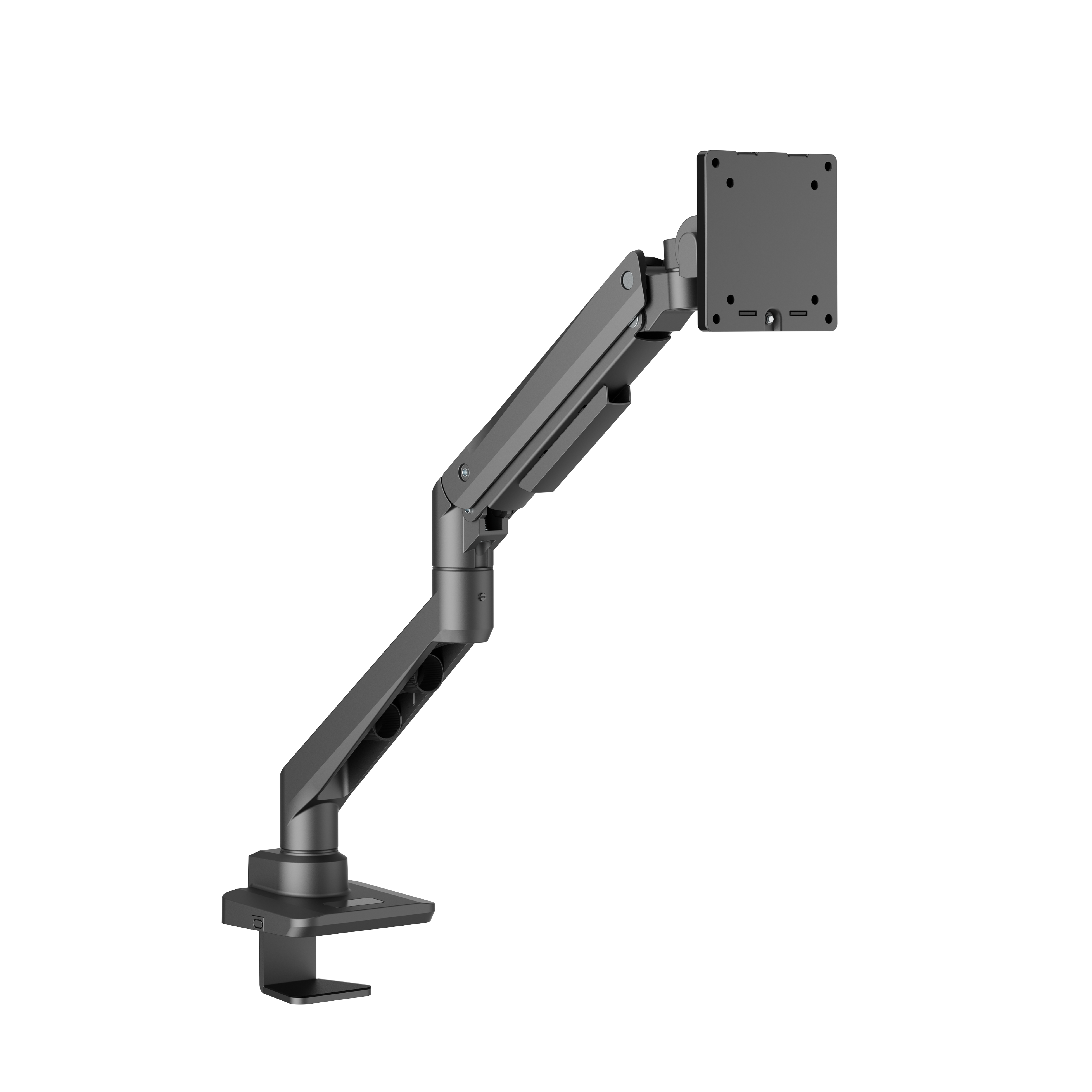

The DMV101 desk mount with gas spring for 19″-49″ screens is a solution for those who value ergonomics when working with a computer. Full height adjustment combined with 360° arm rotation allows you to position the screen to suit the user’s individual needs and ensures excellent comfort during office work. Two types of desk fastenings are suitable for any installation, increasing the functionality of the mount. DMV101 is a perfect choice for those performing any work with full-day use of screens, including in the industry, transport and monitoring centres. This mount is perfect for users who appreciate both functionality and aesthetics of design.
Additional information
| Index | DMV01 |
| Category | Desktop Monitor Mounts |
| Product group | Display Mounts |
| Color | Black |
| Warranty | Limited 5-years |
| Number of screens | 1 |
| Minimum screen size | 19″ |
| Maximum screen size | 49″ |
| Forward tilting | -20° |
| Forward tilting | +50° |
| Arm rotation | 360° |
| Left-right rotation | 90° |
| Maximum load | 20kg |
| VESA Mounting Compatibility | 75×75 up to 100×100 |
| Product dimensions | W: 185 mm D: 116 mm H: 231 mm |
| Product weight | 3,56 kg (7,84 lb) |
| Max. distance from mounting surface | 500 mm (19,68") |
| Min. distance from mounting surface | 231 mm (9,09") |
| Max.mounting pattern | 100 mm x 100 mm |
| Min. mounting pattern | 75 mm x 75 mm |
