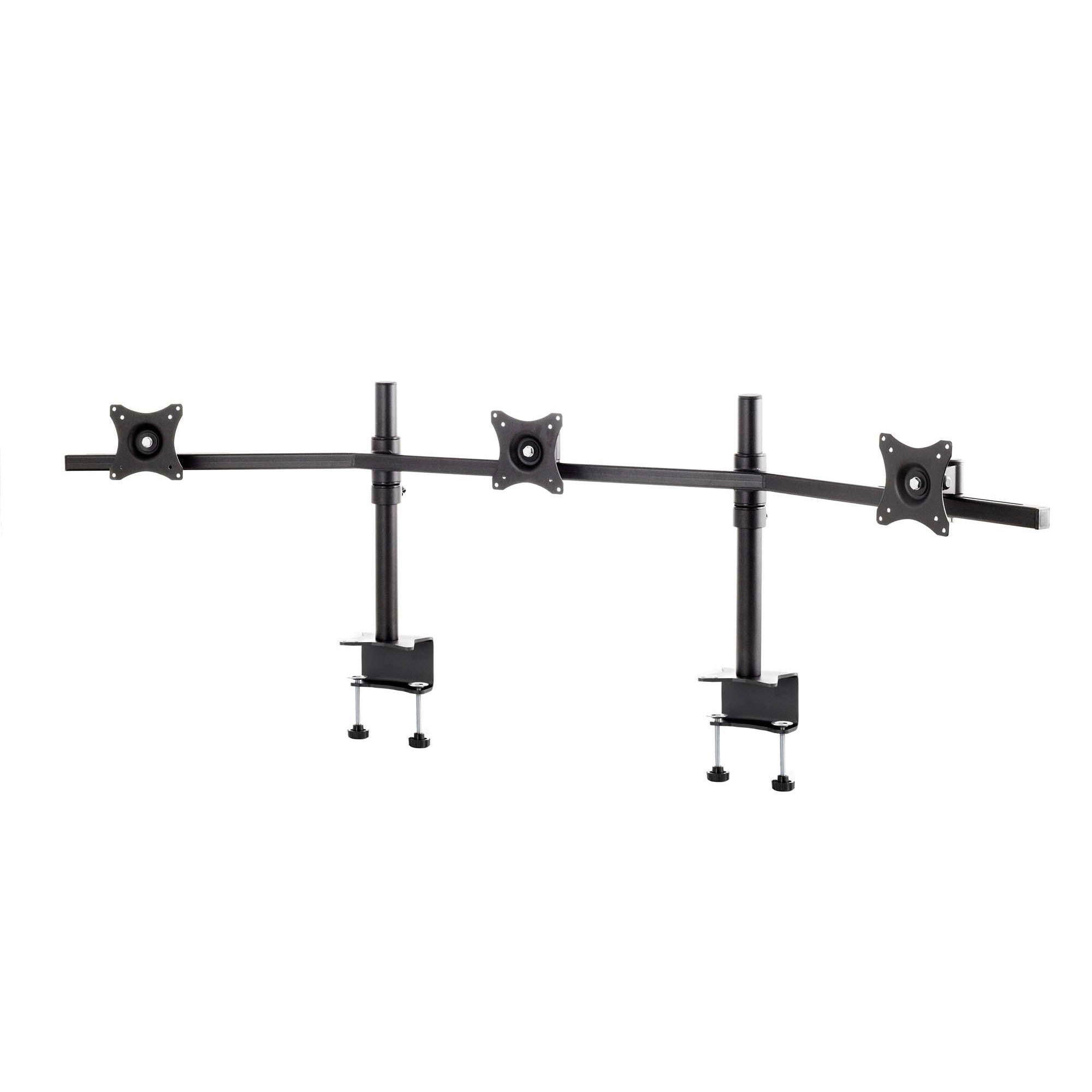

Edbak SV11 Desktop Mount for Three 19-27″ Screens, curved
Product code:The SV11 curved desk mount for three 19″-27″ screens is designed for users who perform work related to all-day screen operation. Screen tilting adjustment by -50°/+50° and 90° right-left screen rotation allow you to position the screens to suit the user’s individual needs and ensure excellent comfort during office work. Two types of desk fastenings of the mount are suitable for any installation, increasing its functionality. SV11 is a perfect choice for those who value ergonomics when working with a computer and spending many hours at the desk, including the industry, transport and monitoring centres.
SEND AN ENQUIRYDescription
- Height adjustment of monitors

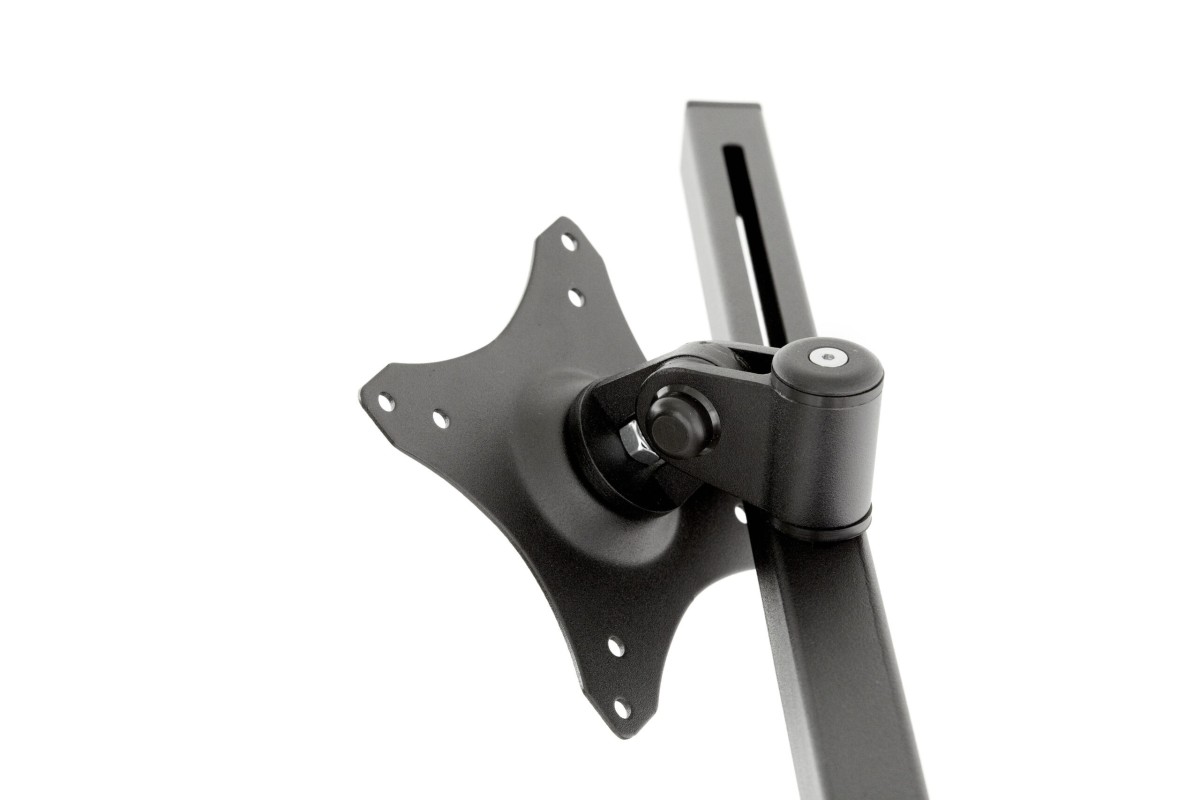

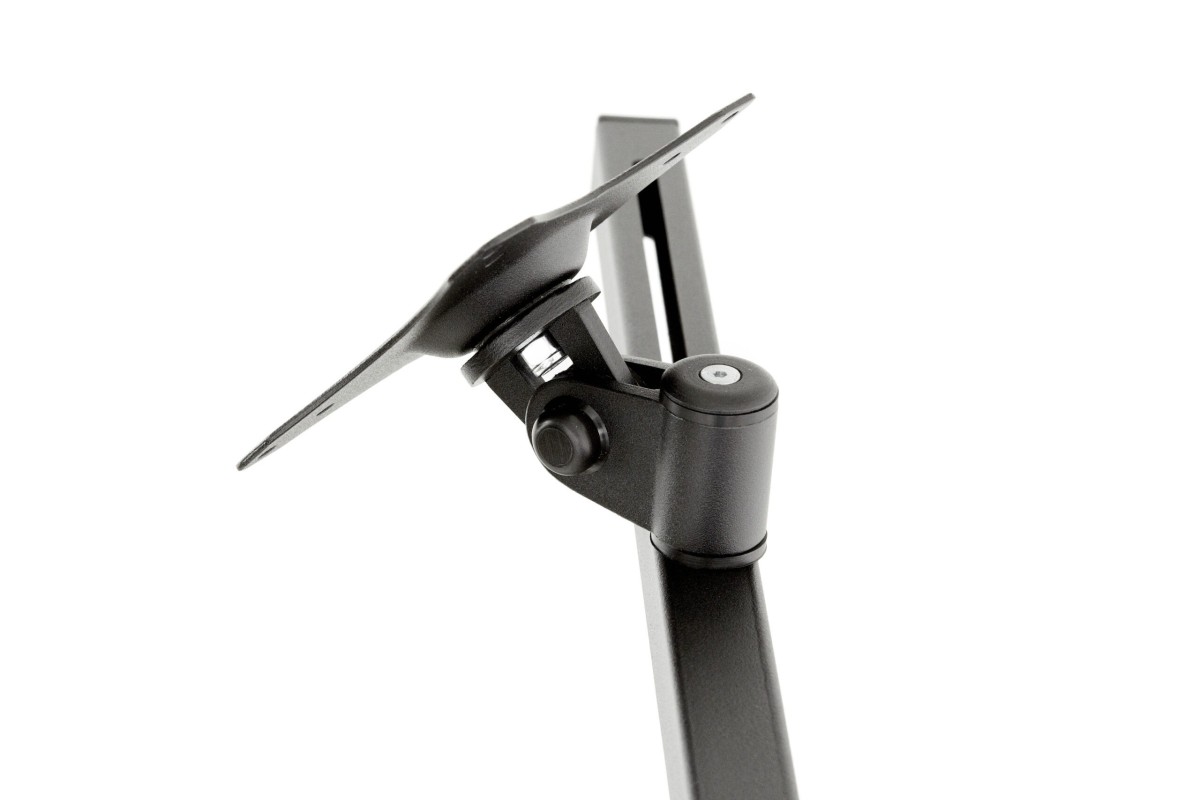

- Screen tilting adjustment by -50° to +50°
- 90° right-left screen position adjustment

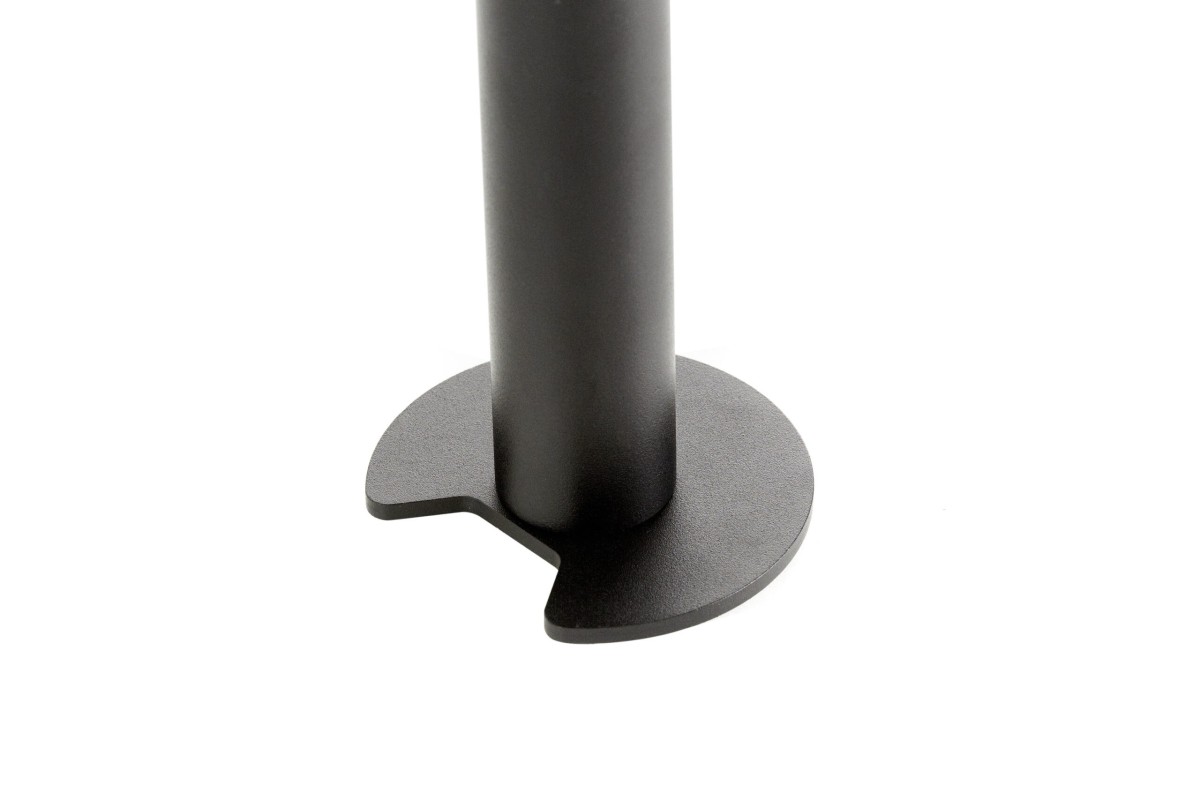

- 2 types of desk fastenings included

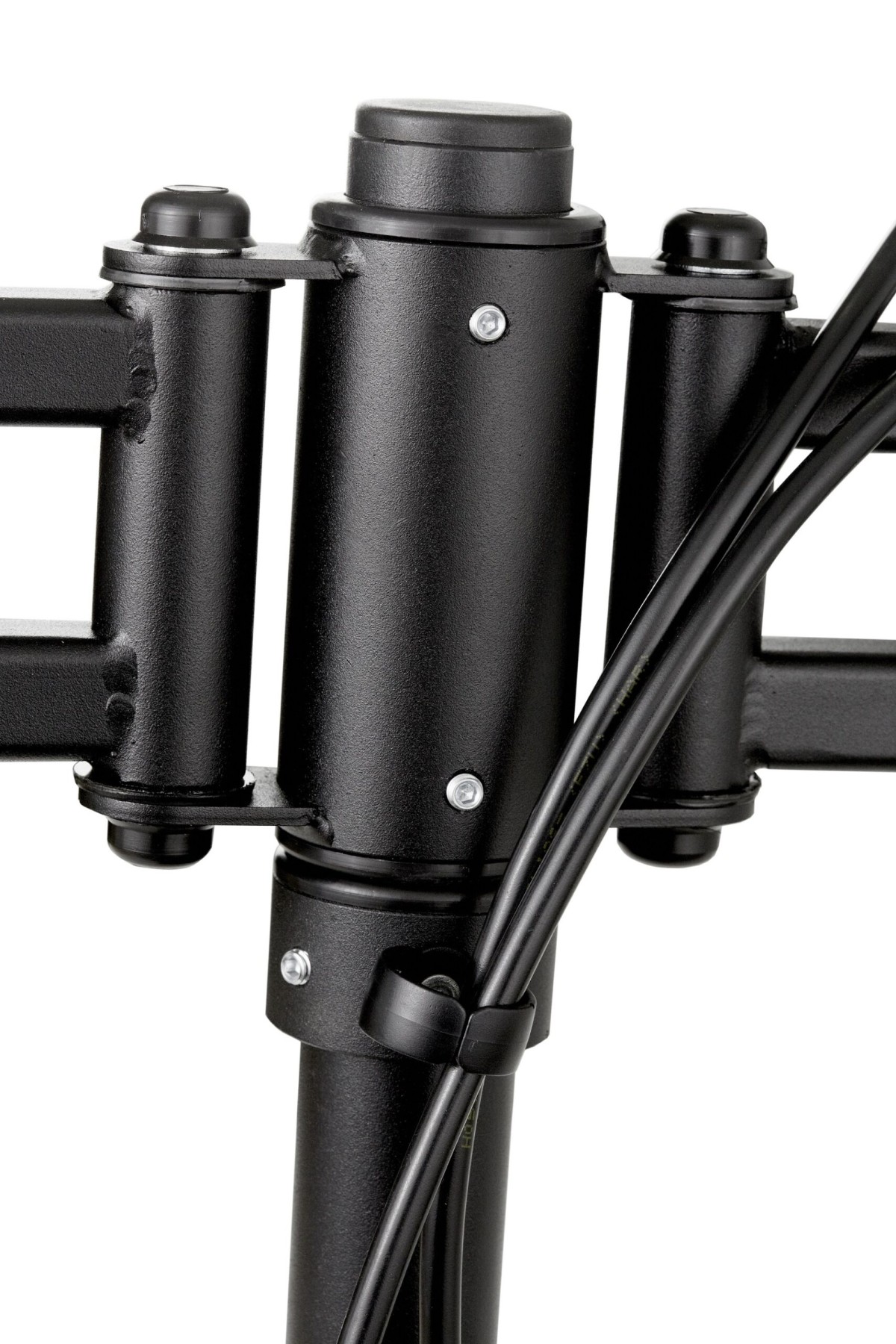

- Cable management system
- Modern design
- Simple and quick installation
Additional information
Product Specifications
| Index: | SV11 |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 3 |
| Minimum screen size: | 19″ |
| Maximum screen size: | 27″ |
| Forward tilting: | -50° |
| Forward tilting: | +50° |
| Arm rotation: | 360° |
| Left-right rotation: | 90° |
| Maximum load: | 30 kg |

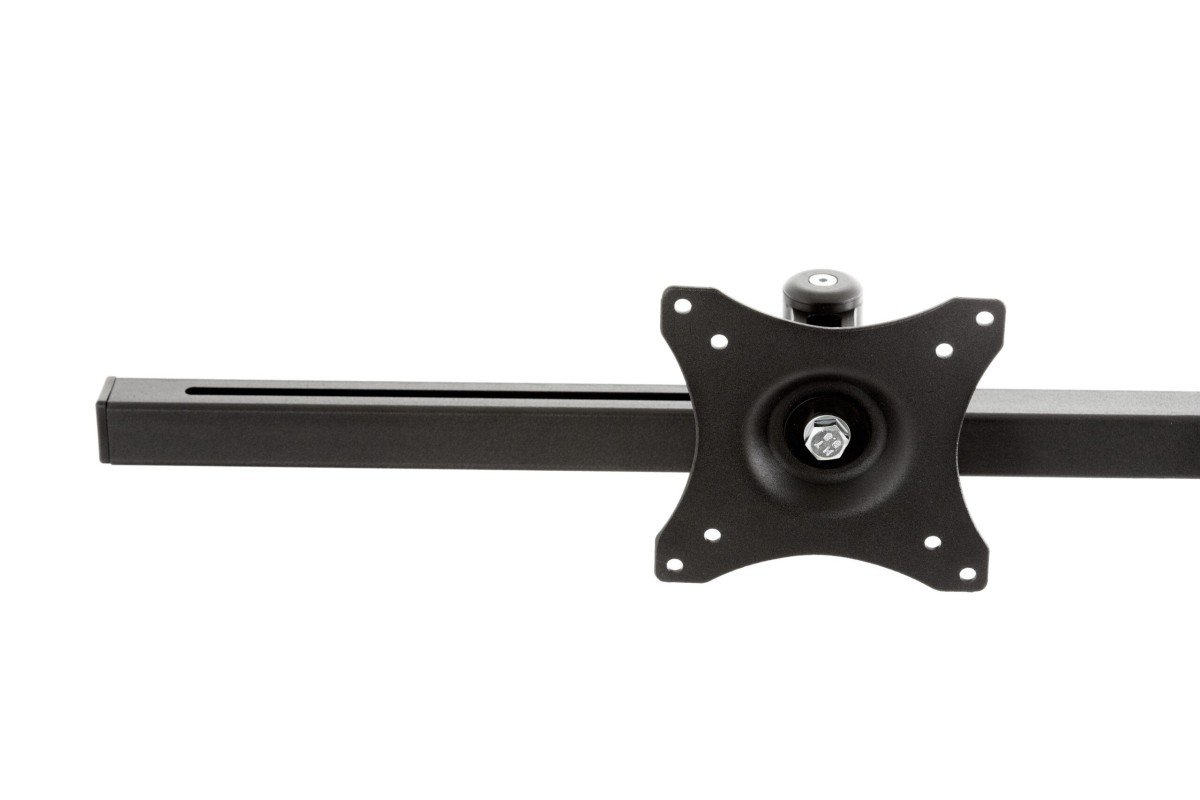

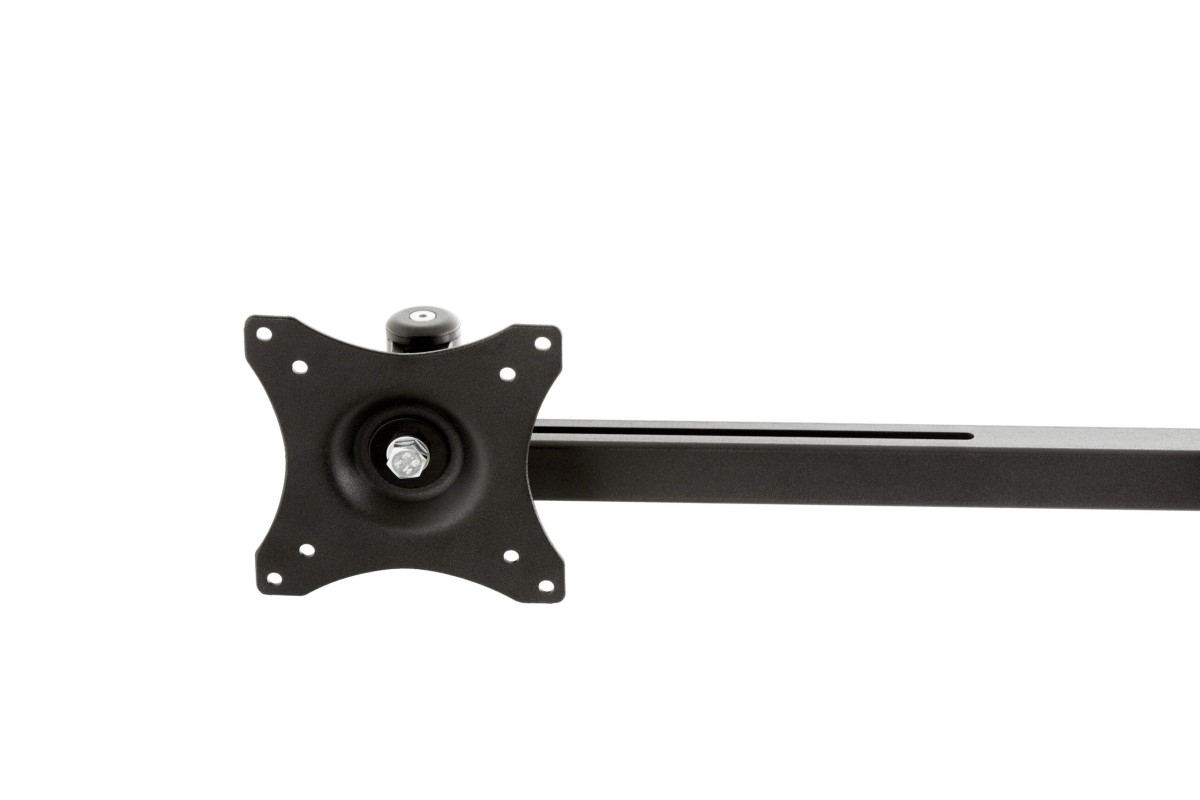

| VESA Mounting Compatibility: | 75×75 up to 100×100 |
Technical Specifications
| Product dimensions: | W: 1537 mm D: 275 mm H: 500 mm
(W: 60,51″ D: 10,83″ H: 19,69″) |
| Product weight: | 8 kg (18 lb) |
| Max. distance from mounting surface: | 400 mm (15,75″) |
| Min. distance from mounting surface: | 100 mm (3,94″) |
| Max. mounting pattern: | 100 mm x 100 mm |
| Min. mounting pattern: | 75 mm x 75 mm |
Logistics Data
| SAP Index: | WUBI-SV11c-B |
| EAN Code: | 5908252960620 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
