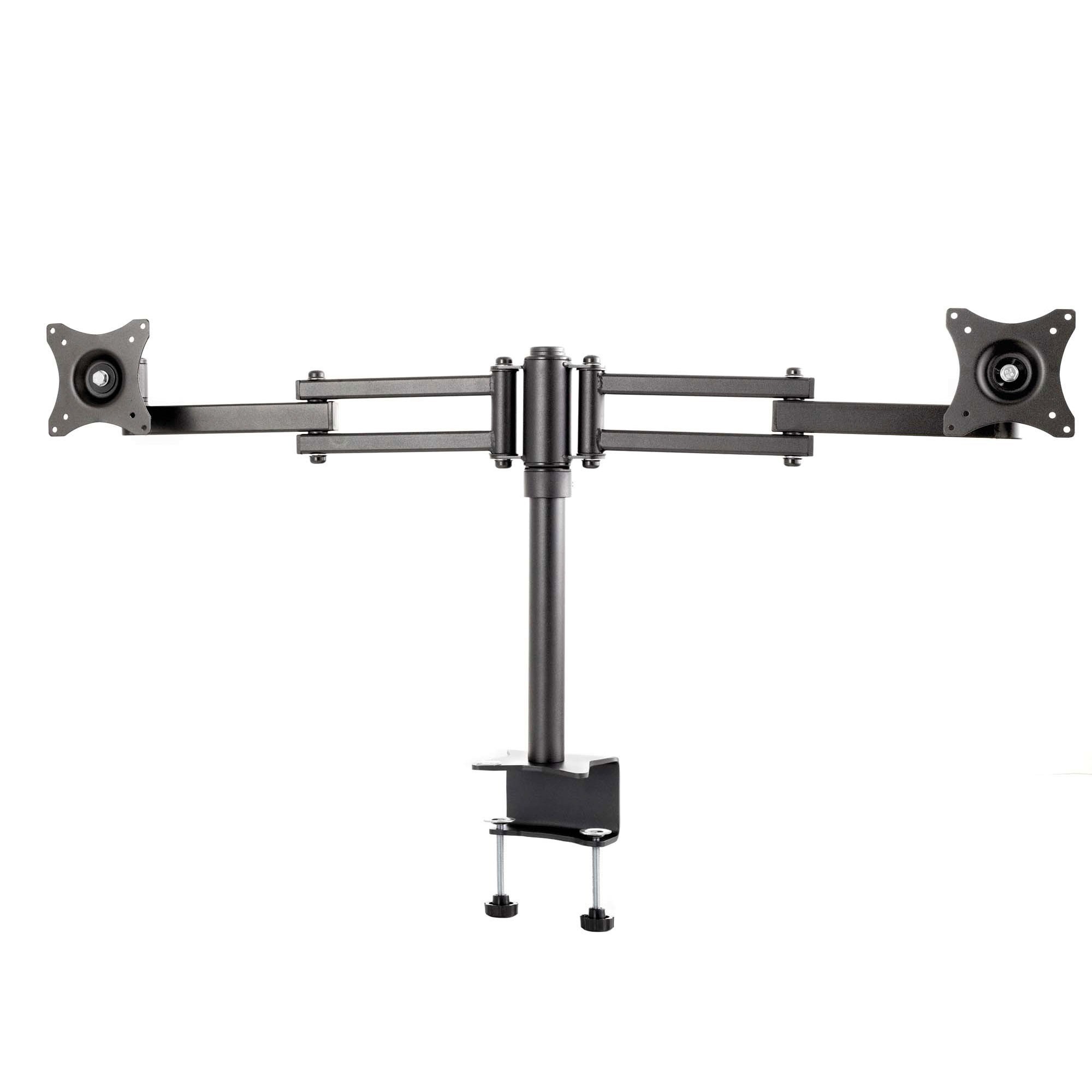

Edbak SV06 Desktop Double Arm Mount for Two 19″-27″ Screens

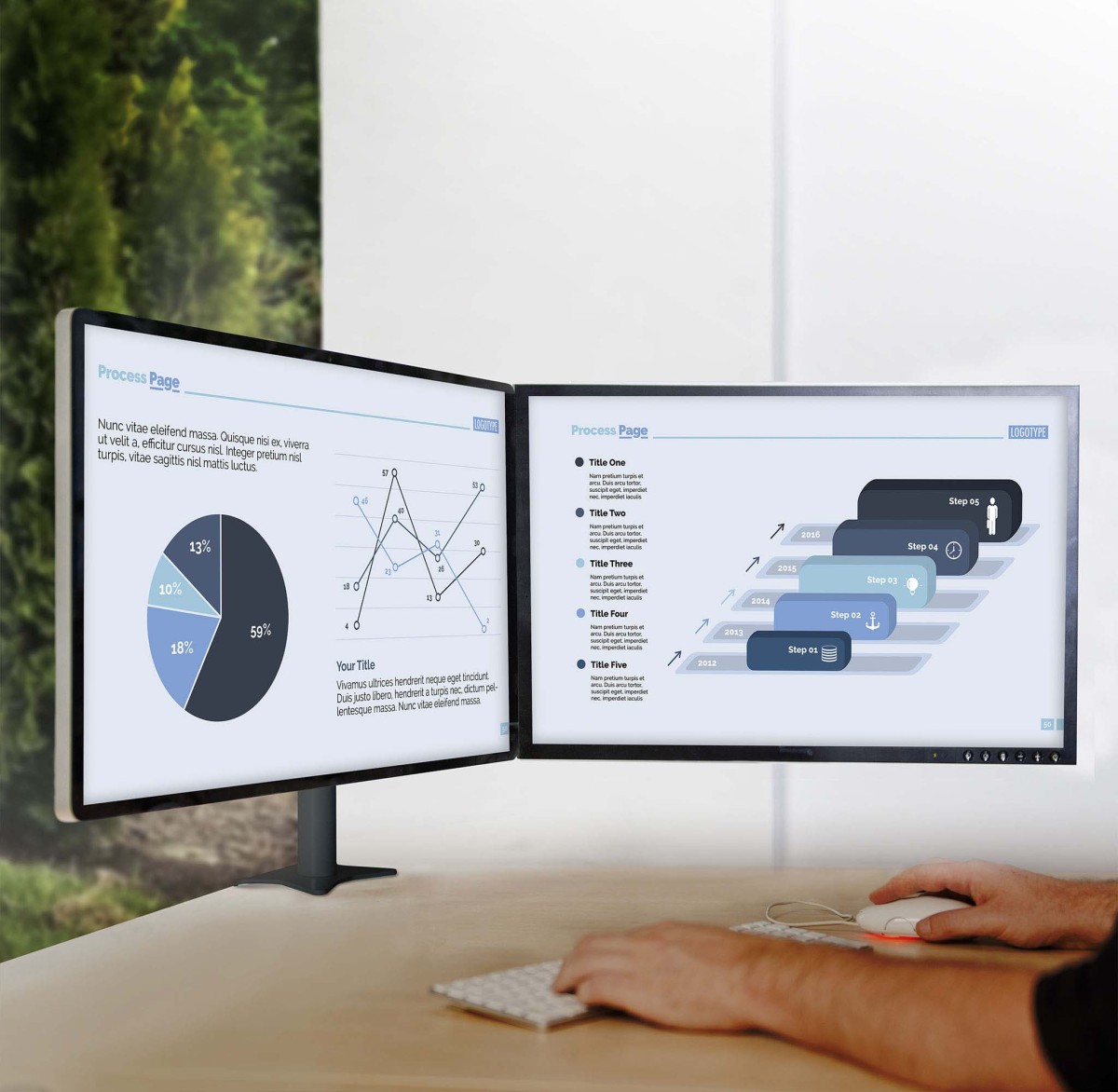

Product code:Designed for mounting two monitors. SV06 is a desktop mount with arms, which is a perfect solution for those who find computer ergonomics a priority . Two types of desk mounts are suitable for any installation, increasing the functionality of the mount. Three rotation axes and full height adjustment of both monitors enable the user to achieve optimum screen alignment and provide the maximum comfort of work. Cable management is integrated in the entire mount for smart installation. SV06 will prove itself mainly among those in professions related to the day-long operation of monitors, in particular, in the industry, transport and monitoring centres. including in the industry, transport and monitoring centres.
SEND AN ENQUIRYDescription
- Designed for mounting 2 monitors
- Easy height adjustment

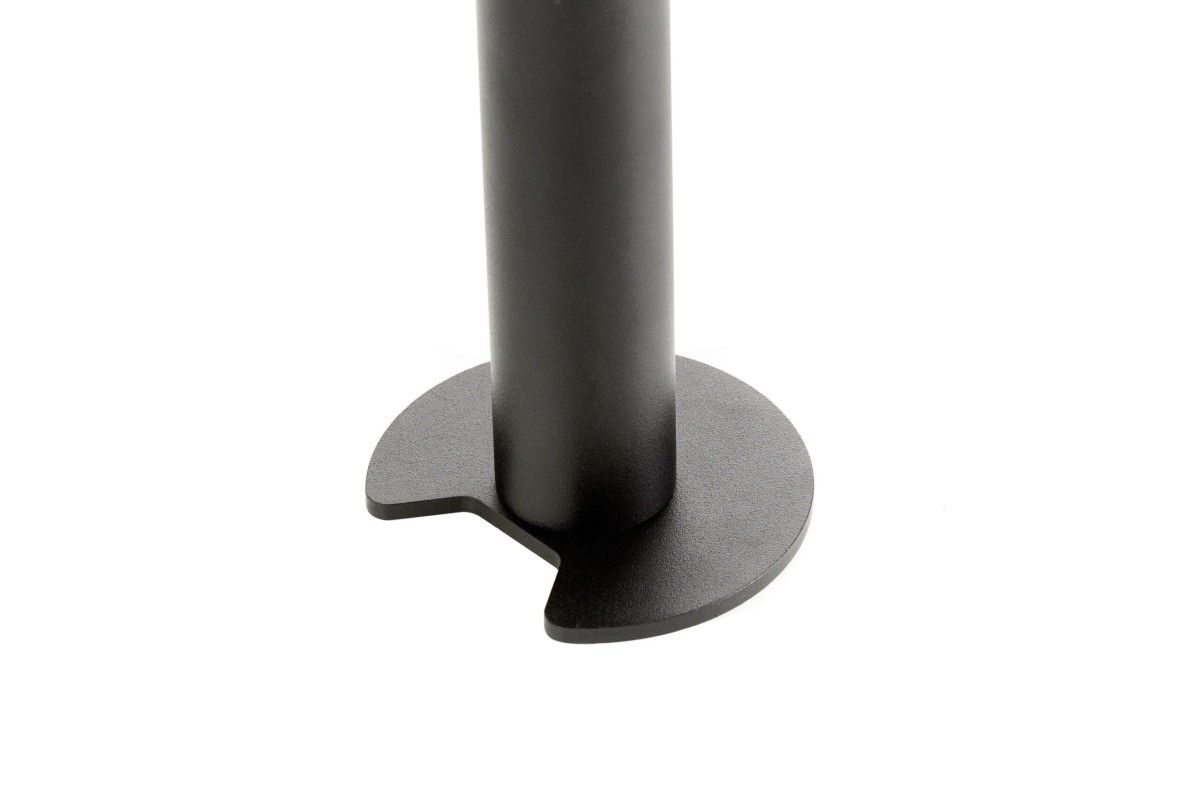

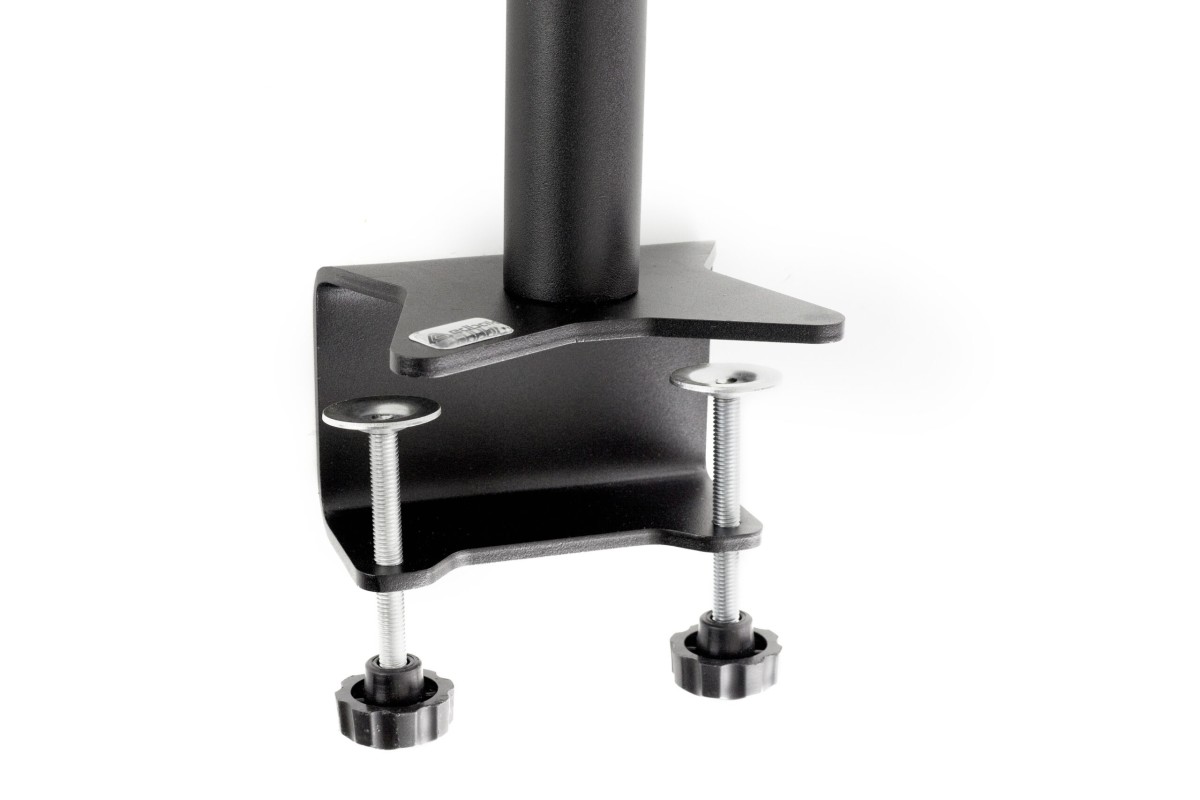

- 2 types of fastenings included

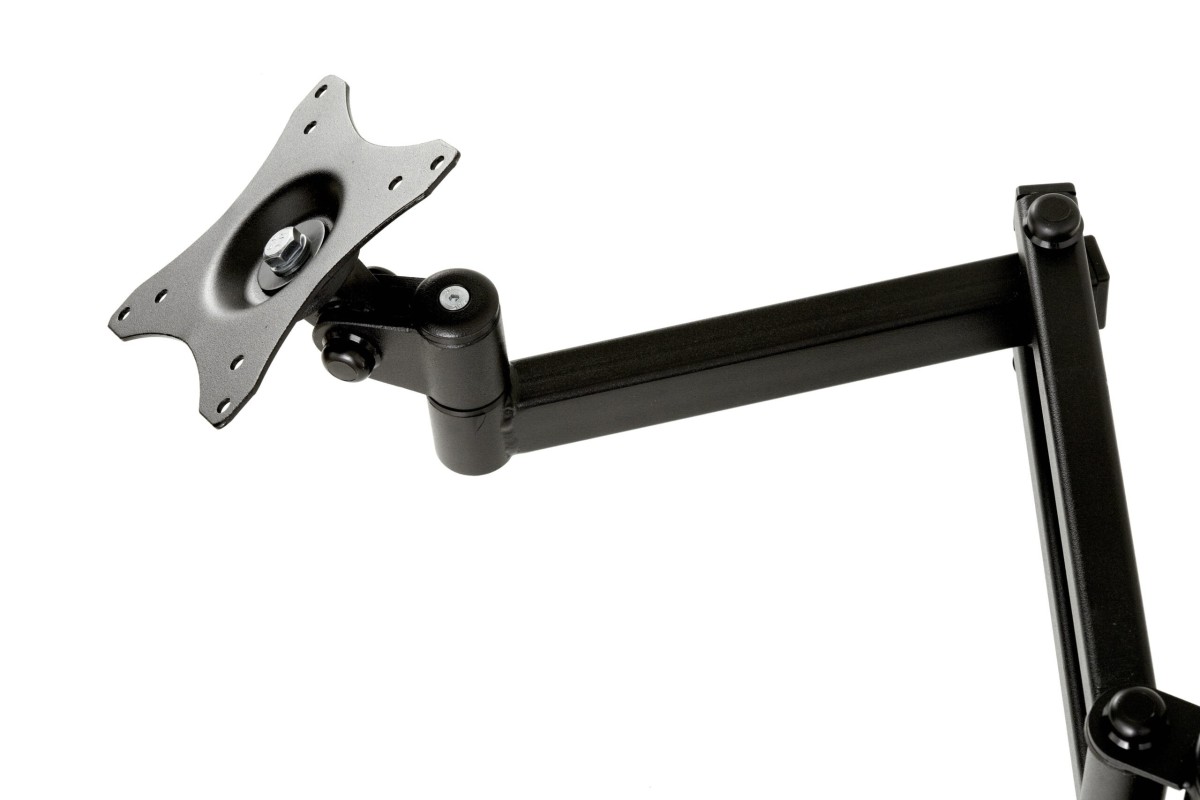

- 3 rotation axes of each arm

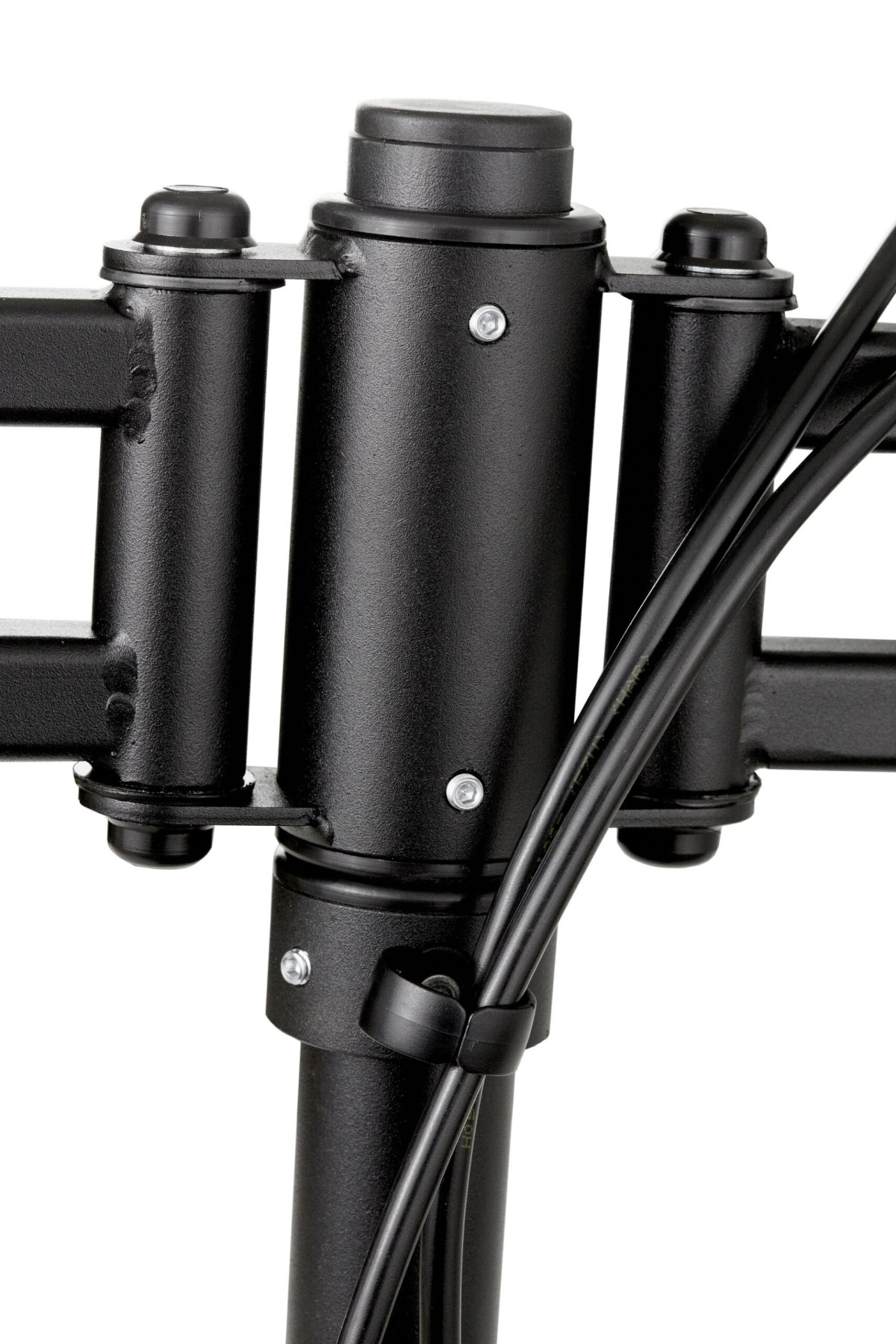

- Cable management
- Simple installation
Additional information
Product Specifications
| Index: | SV06 |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 2 |
| Minimum screen size: | 19″ |
| Maximum screen size: | 27″ |
| Maximum load: | 20 kg |
| Forward tilting: | -50°/+50° |
| Height adjustment: | YES |
| VESA Mounting Compatibility: | 75×75 up to 100×100 |
Technical Specifications
| Product dimensions: | W: 160 mm D: 520mm H: 500 mm
(W: 6,30″ D: 20,47″ H: 19,69″) |
| Product weight: | 6 kg (13 lb) |
| Max. distance from mounting surface: | 390 mm (15,35″) |
| Min. distance from mounting surface: | 120 mm (4,72″) |
| Max. mounting pattern: | 100 mm x 100 mm |
| Min. mounting pattern: | 75 mm x 75 mm |
Logistics Data
| Index: | WUBI-SV06c-B |
| EAN Code: | 5908252961603 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
Product Card
