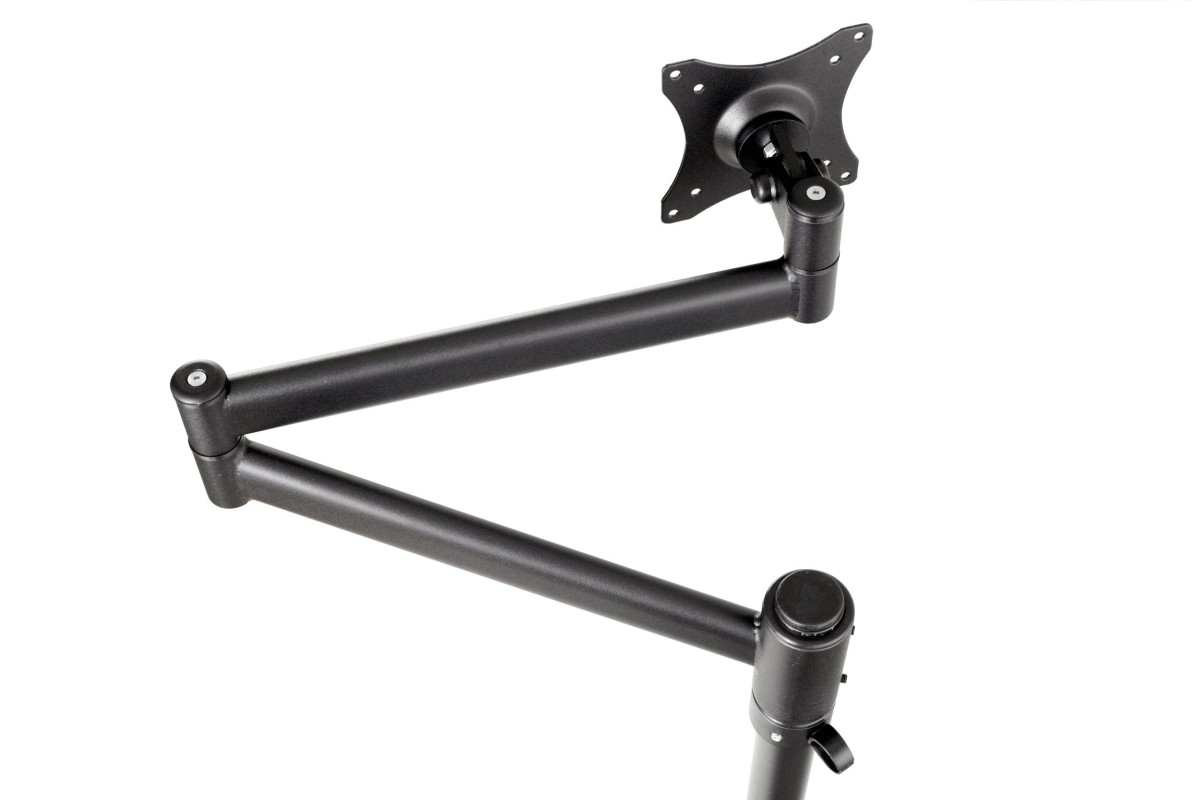

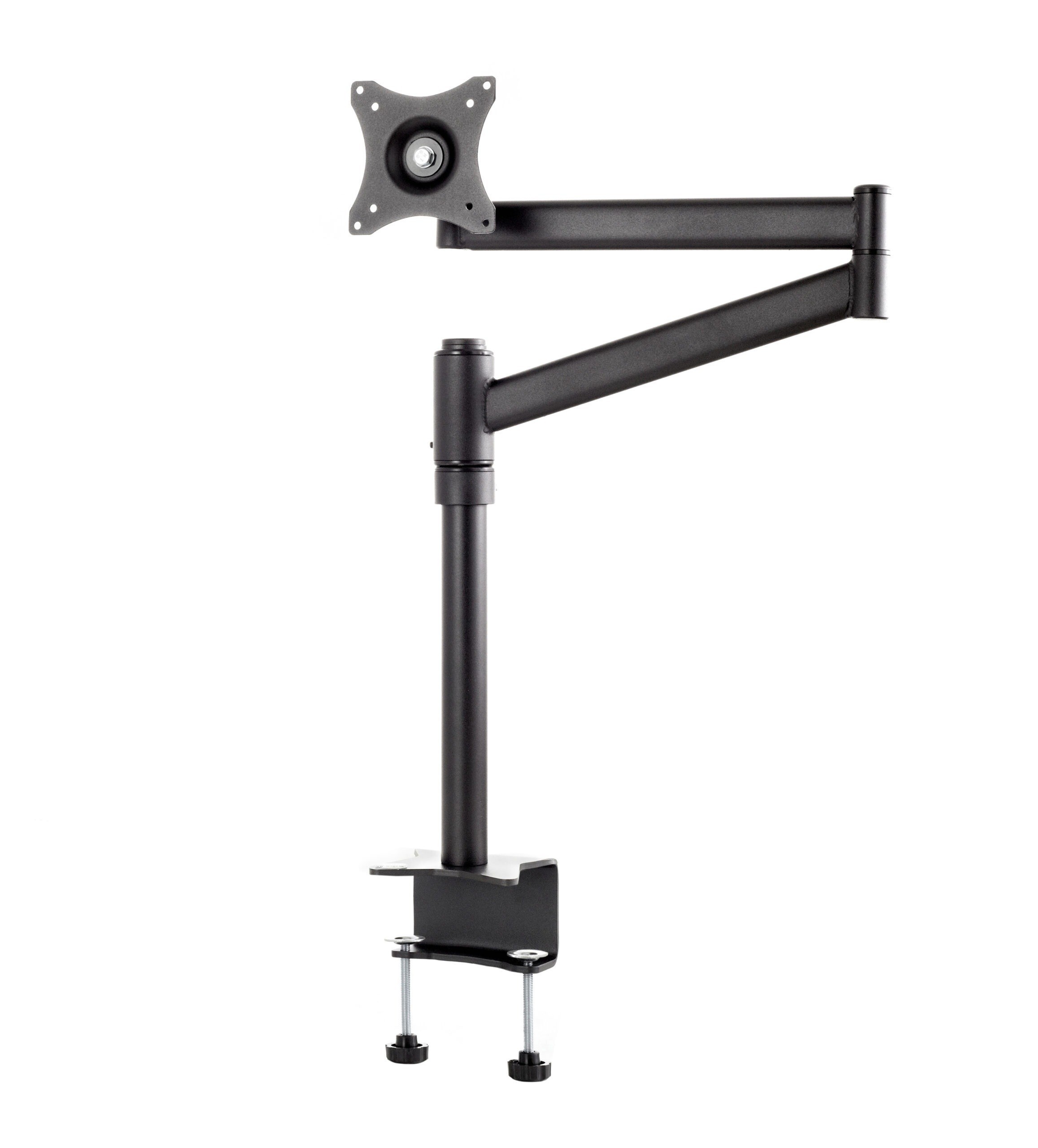

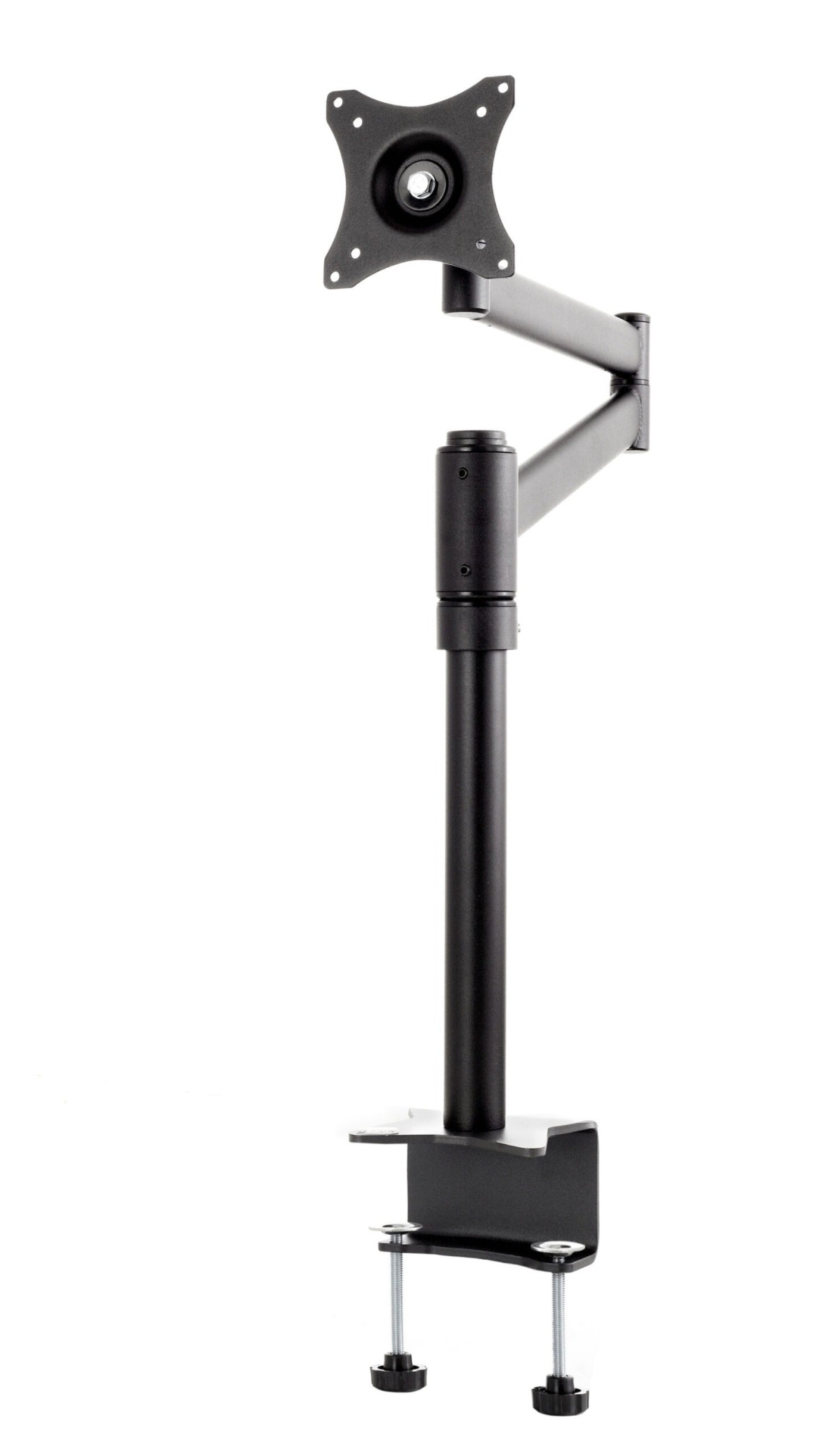

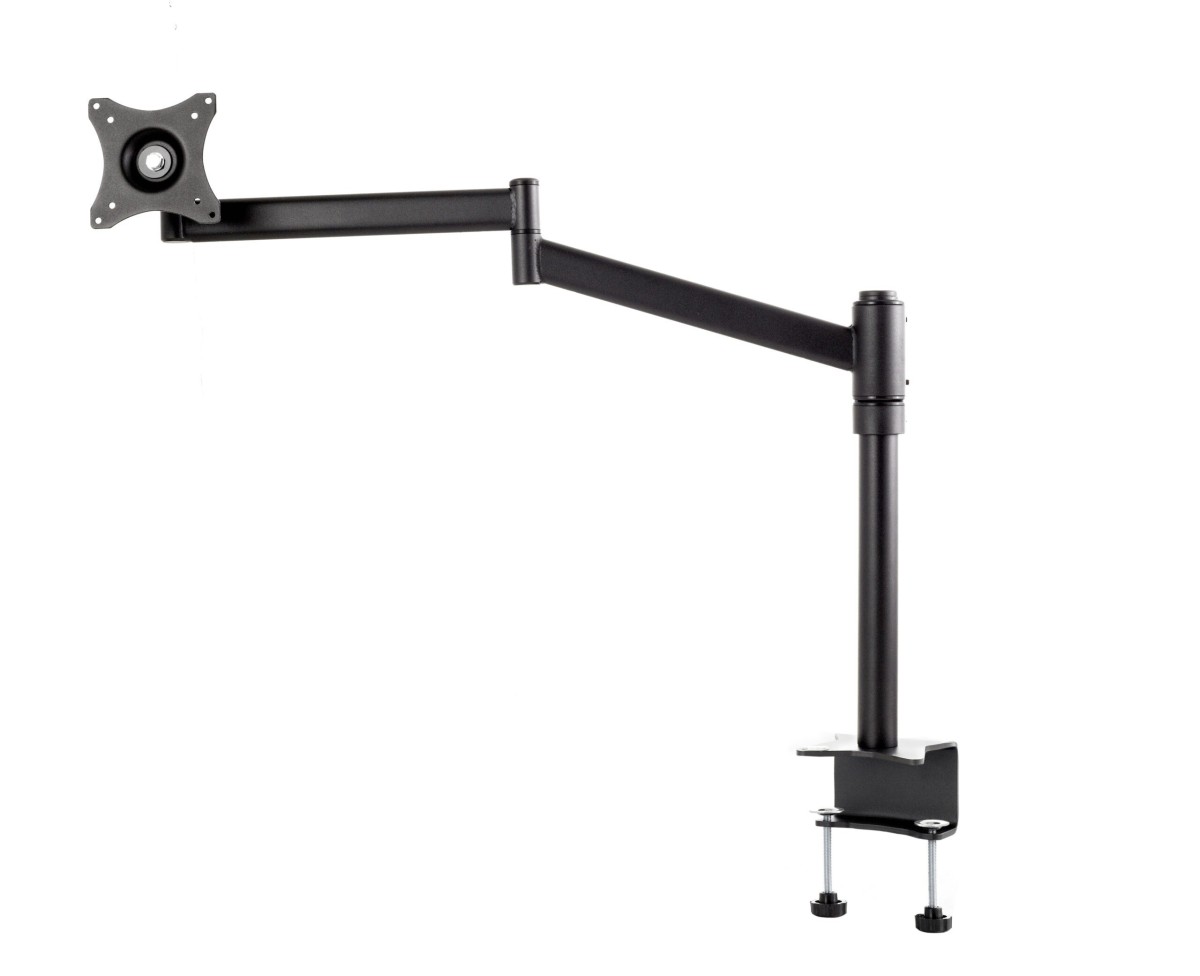

Edbak SV03 Desktop Double Arm Mount for 10″-29″ Screens
Product code:The SV03 desk mount with a double arm for 19″-27″ screens is a solution for those who value ergonomics when working with a computer. Full height adjustment combined with 360° arm rotation allows you to position the screen to suit the user’s individual needs and ensures excellent comfort during office work. Two types of desk fastenings are suitable for any installation, increasing the functionality of the mount. SV03 is a perfect choice for those performing any work with full-day use of screens, including in the industry, transport and monitoring centres. This mount is perfect for users who appreciate both functionality and aesthetics of design.
SEND AN ENQUIRYDescription
- Full height adjustment

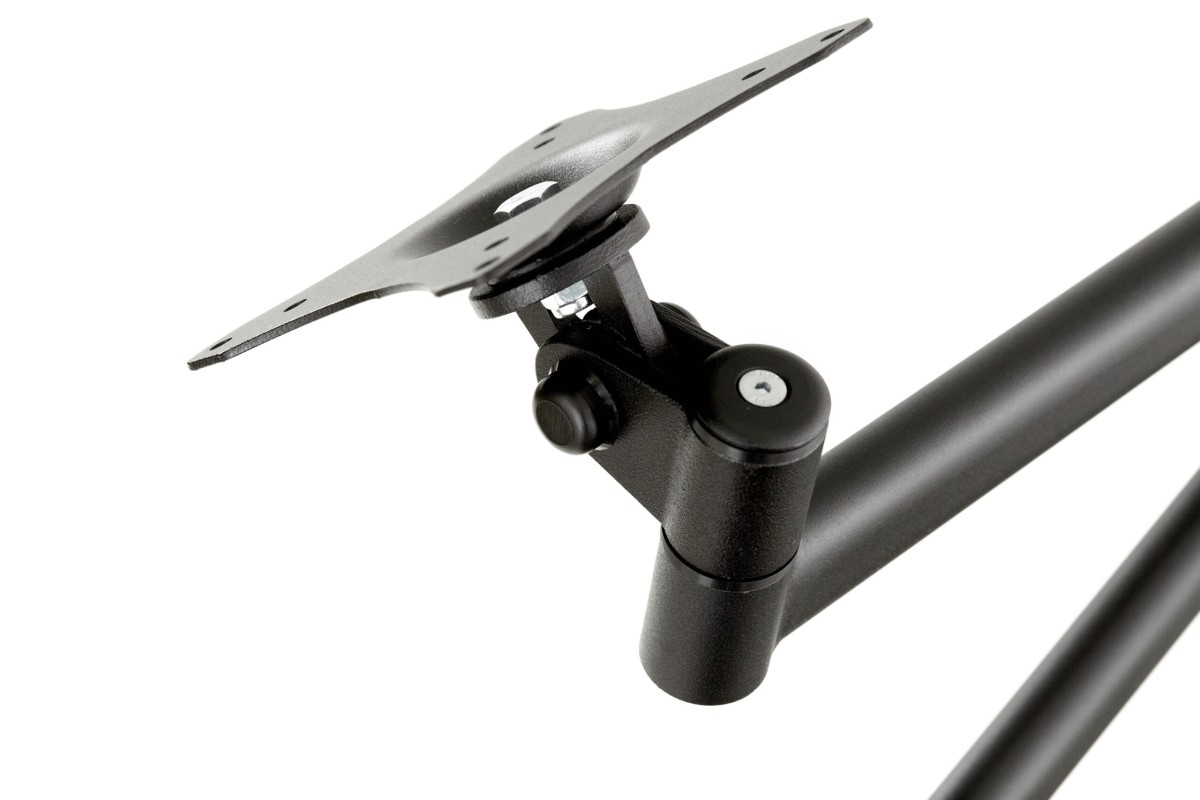

- Option of screen tilting by -50° to +50°
- 360° arm rotation

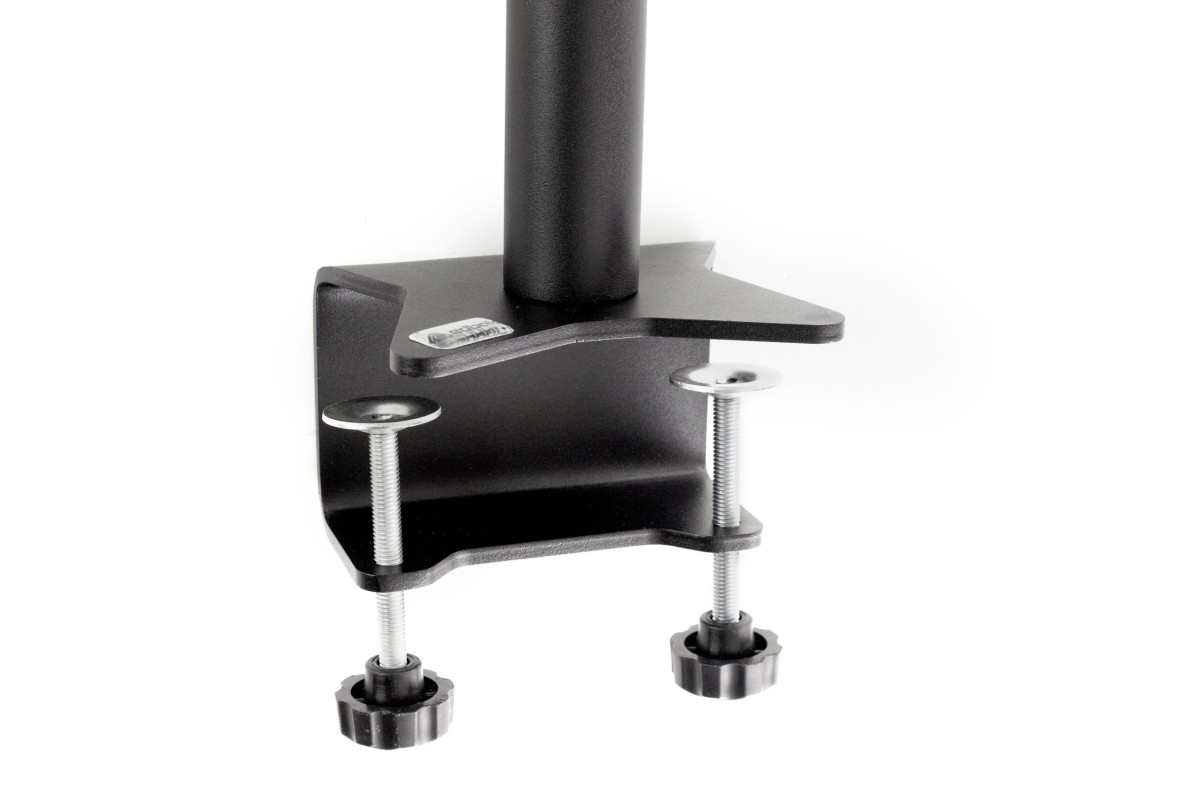

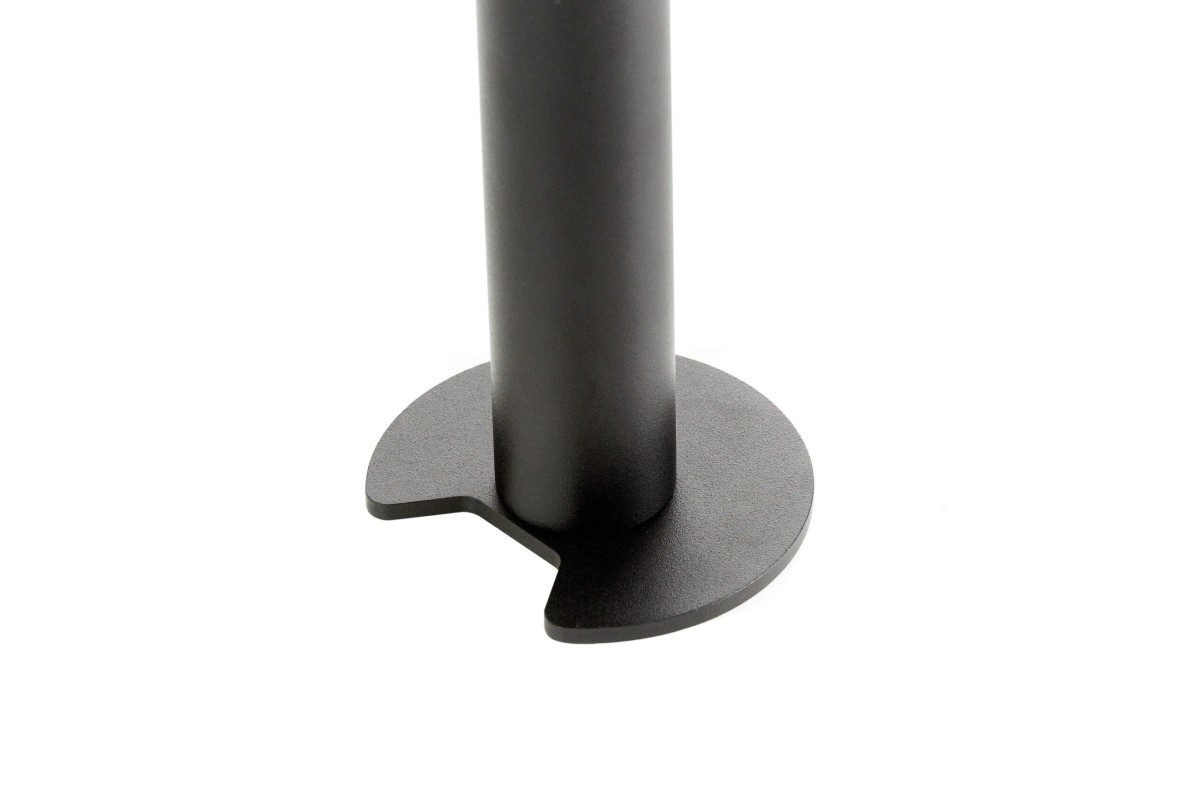

- 2 types of desk fastenings included
- Cable management system
- Modern design
- Simple and quick installation
Additional information
Product Specifications
| Index: | SV03 |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 1 |
| Minimum screen size: | 10″ |
| Maximum screen size: | 29″ |
| Forward tilting: | -50° |
| Forward tilting: | +50° |
| Arm rotation: | 360° |
| Left-right rotation: | 360° |
| Maximum load: | 10 kg |
| VESA Mounting Compatibility: | 75×75 up to 100×100 |
Technical Specifications
| Product dimensions: | W: 120 mm D: 760 mm H: 500 mm
(W: 4,72″ D: 29,92″ H: 19,69″) |
| Product weight: | 4,5 kg (10 lb) |
| Max. distance from mounting surface: | 530 mm (20,87″) |
| Min. distance from mounting surface: | 240 mm (9,45″) |
| Max. mounting pattern: | 100 mm x 100 mm |
| Min. mounting pattern: | 75 mm x 75 mm |
Logistics Data
| SAP Index: | WUBI-SV03c-B |
| EAN Code: | 5902841103160 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
