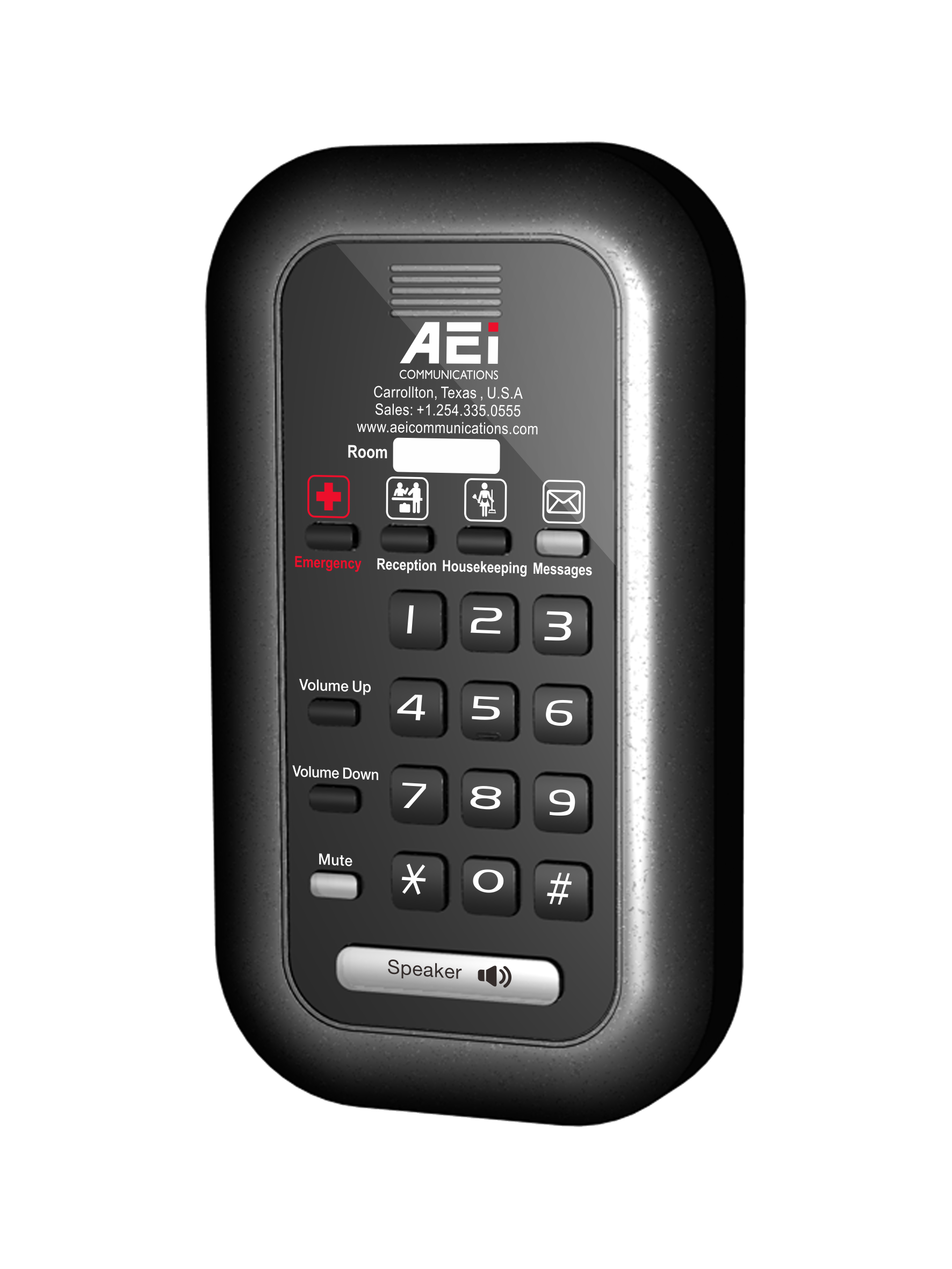

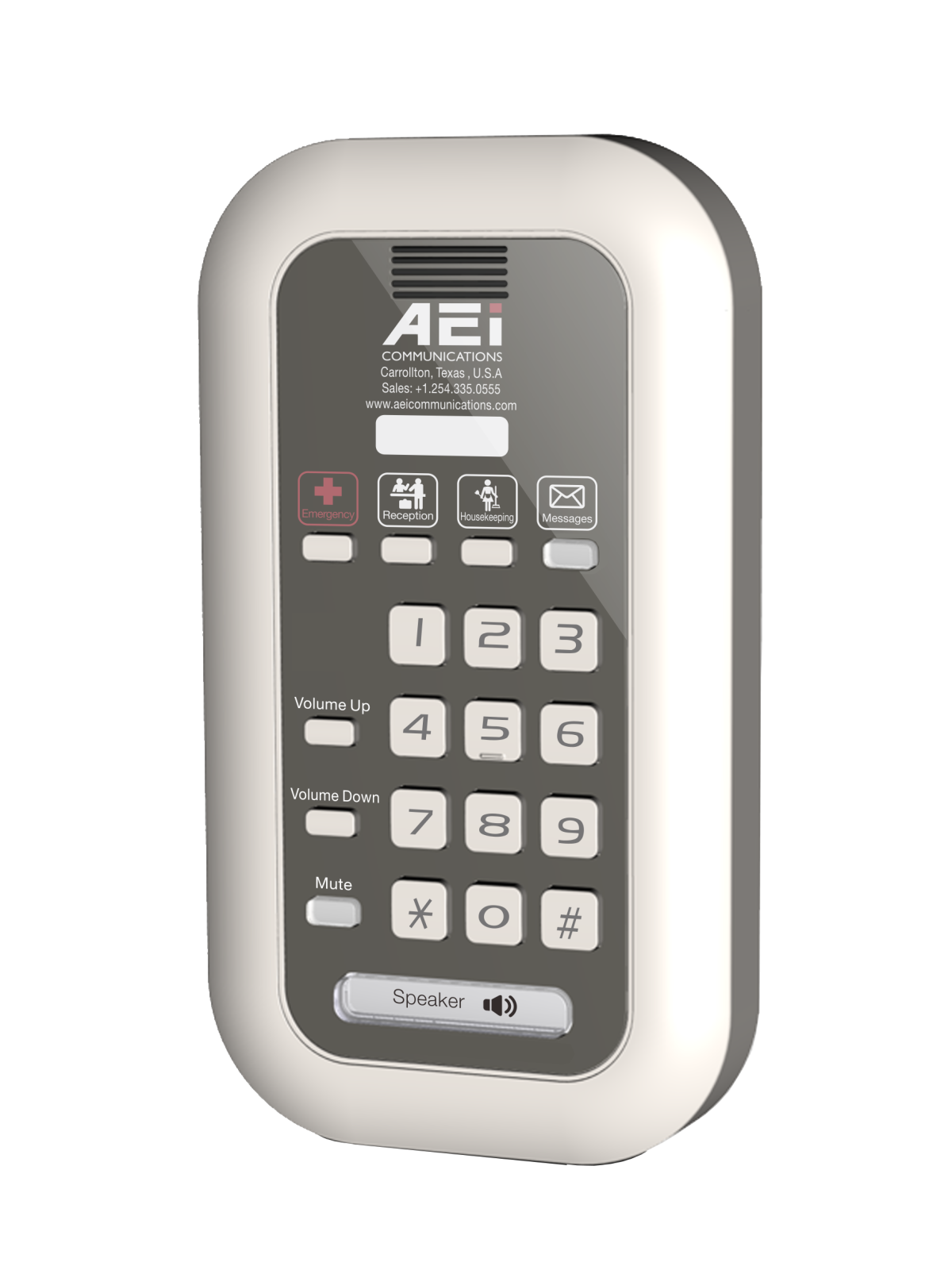

AEI VS-6104-S(A)/VS-6104-S(A)-EW Wall Mount Single-Line Analog Speaker Phone

Product code: VS-6104-S(A)/VS-6104-S(A)-EW

This Wall Mount Single Line is perfect when space is tight,or you don’t need too many services or functions.The elegant design and compact footprint of the VS series make it perfect for elevator lobbies and other public spaces, as well as guest rooms in limited service properties or as additional phones in suites . Your guests will enjoy a premium quality speakerphone, and the VS series’ timeless styling blends right in with your room design.

It’s wall mountable for great flexibility .The VS series is a dependability and thoughtful design, the VS series is a perfect way to round out your offering and for all!

SEND AN ENQUIRY

Description

• Wall Mount Single-Line Analogue Base
• Half Duplex speakerphone
• Mute, Volume Up , Volume Down
• Message waiting, Ring Indicator
• Fully interoperable with all popular hospitality IP PBXs
• Up to Four (4) programmable guest service keys
• Emergency cord with button (Optional)
• Adjustable Ringer switch Hi and Low
• Adjustable volume control

Additional information

Product Spec
VS-6104-S(A) Wall Mount Single-Line Speakerphone

Color
Black Standard

Finish
Textured

Faceplate
Customizable Faceplate 143mm x 63mm

Power
Line Power; 24V to 56V

Signaling
Standard DTMF

Phone Feature
Speakerphone ,Mute , Volume Up and Down , Four service dial keys, Ringer switch adjustable Hi and Low

Ring Equivalence
Z

Dimension
180mm(L) x 1oomm(W) x 27.5 mm (H) (7.08 ” x 3.93″ x 1.08 “)

Weight 228g

Jacks
RJ11 PSTN jack x1

Cords
Line cord 0.7 feet x1

PTSN
USA: Part 15B
Europe: TBR 21

EMI
USA: FCC Part 15B
Europe: EN55032, EN55024 & EN60950-1

RoHS
Complies with directive 2002/95/EC RoHS

Temperature
Storage: -10ºC to +60ºC
Operating: +5ºC to +35ºC
