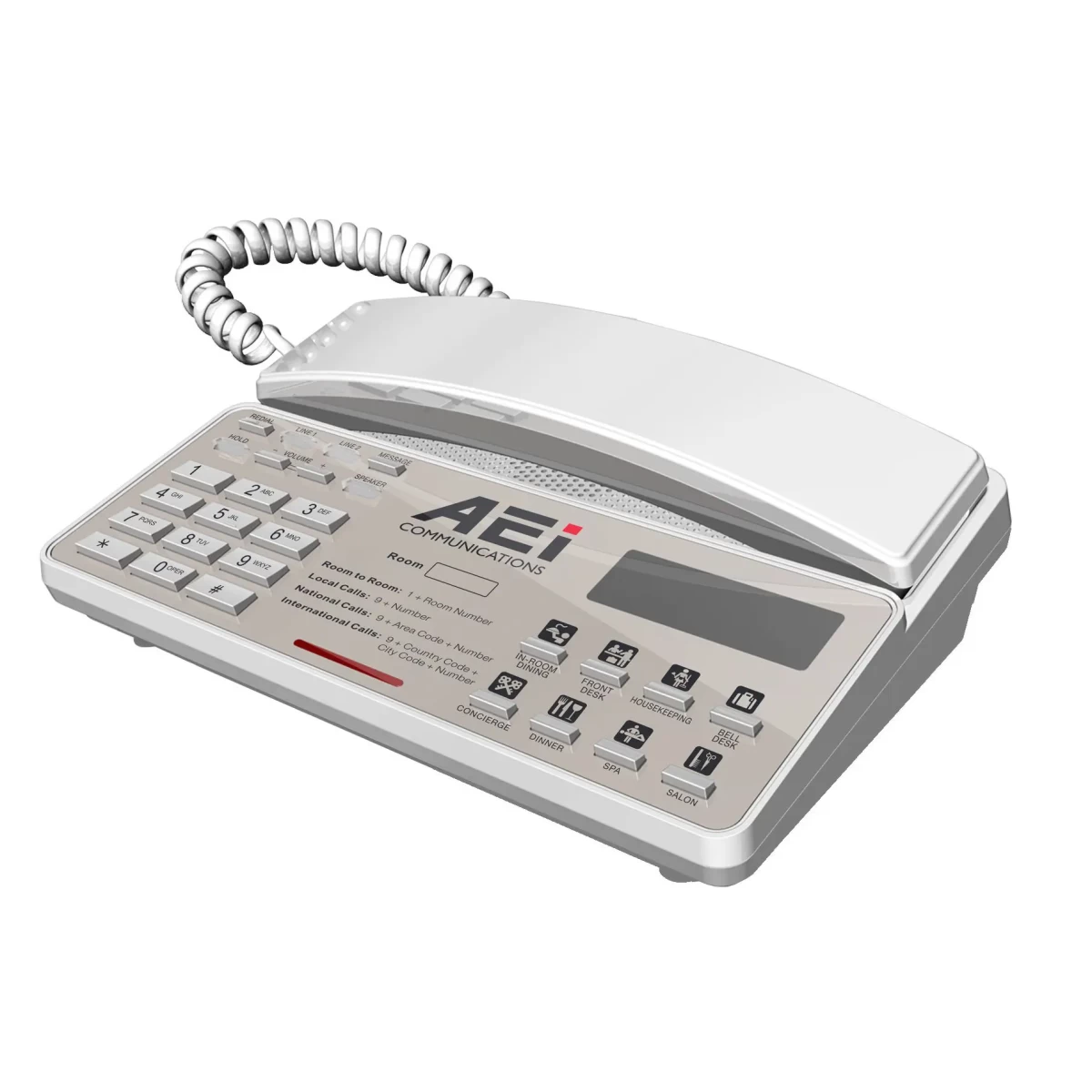

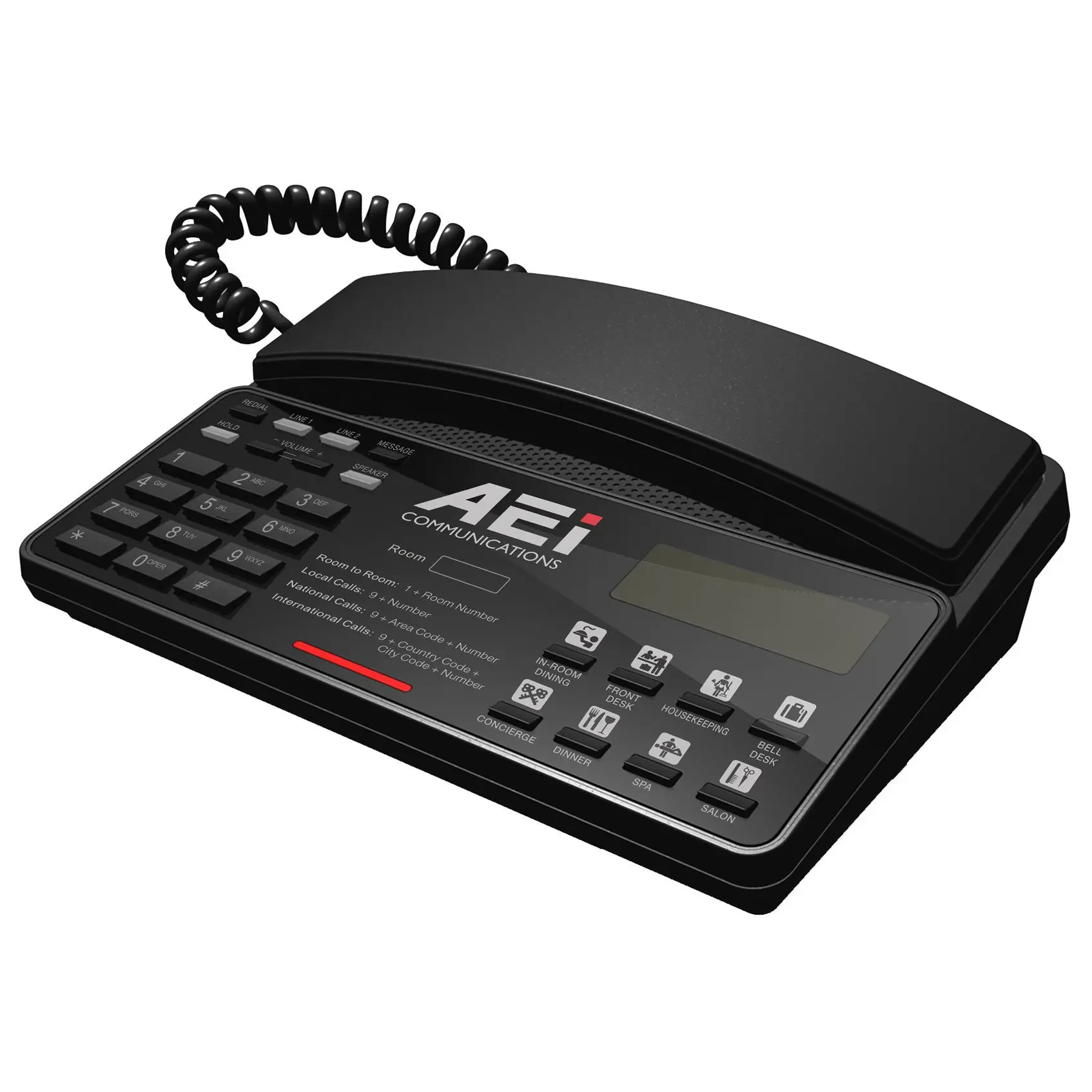

AEI VH-9X08-SU Single or Dual-Line IP Corded Speakerphone

Product code: VH-9X08-SU

One or Two Line IP corded speakerphone.

Our VH series of VoIP phones deliver state-of-the-art IP technologies that enable you to unlock the true value of your IP investment. Deploy the VH series as a feature-rich corded IP phone with a display. Perfect for saving money on VoIP port licensing fees!

Easier management, greater guest service, and better cost control are at the heart of every one of AEi’s advanced VoIP solutions.

SEND AN ENQUIRY

Description

• One or Two Line IP Corded .
• Full Duplex speakerphone
• Dot Matrix LCM 16X2 with backlight .
• Redial, Hold, Mute, Message, Volume Control
• Message waiting, Ring Indicator
• Fully interoperable with all popular hospitality IP PBXs
• Up to eight (8) programmable guest service keys
• ADA-compliant volume control
• Easy management with Web-Based GUI & auto-provisioning

Additional information

Codec
G.711Protocol
HTTP/DHCP server
Static / DHCP IP assignment
ToS / VLAN IEEE 802.1 p/q
SRTP protocol is not available in fear of the Eurasian Economic Community

SIP
SIP V2 (RFC3261)

Security
Web authentication for web setup
MD5 for SIP authentication (RFC 2069/ RFC2617)
TLS 1.2

DTMF
In-Band / Out-of-Band DTMF
(RFC2833) / SIP Info (RFC2976)

Voice Quality
Comfort Noise Generator
Echo canceller: LEC / AEC
Jitter buffer/PLC

Keys
Dial keys; Function keys;Line keys
with red color LED; Hold, Redial,
Message, Volume +/-, Mute, Speaker, Speed Dials

Administration
Web GUI configurable
Firmware upgrade via TFTP
Auto-provisioning via TFTP

Power
Standard: PoE module
Optional: Wall Power

Jacks
10/100 RJ45 WAN port x 1
DC jack 5V x 1
USB type A x 2Indicators & Features
Line Status; Hold; Mute;Speaker; Message Waiting; Ringing

EMI
USA: FCC Part 15B
Europe: EN55032

Safety
Europe: EN 60950-1

EMC
Europe: EN55024, EC61000-4-4
EN61000-3-2, EC61000-4-5
EN61000-3-3, EC61000-4-6
IEC61000-4-2, EC61000-4-8
IEC61000-4-3, EC61000-4-11

RoHS
Complies with directive 2002/95/EC
RoHS (2005/613/EC)

Temperature
Storage: -10ºC to +60ºC
Operating: +5ºC to +35ºC

Colors
Black, Ash (Custom colors on request)

Dimensions
208mm(L)x132mm(W)x70mm(H)

Weight
650g
