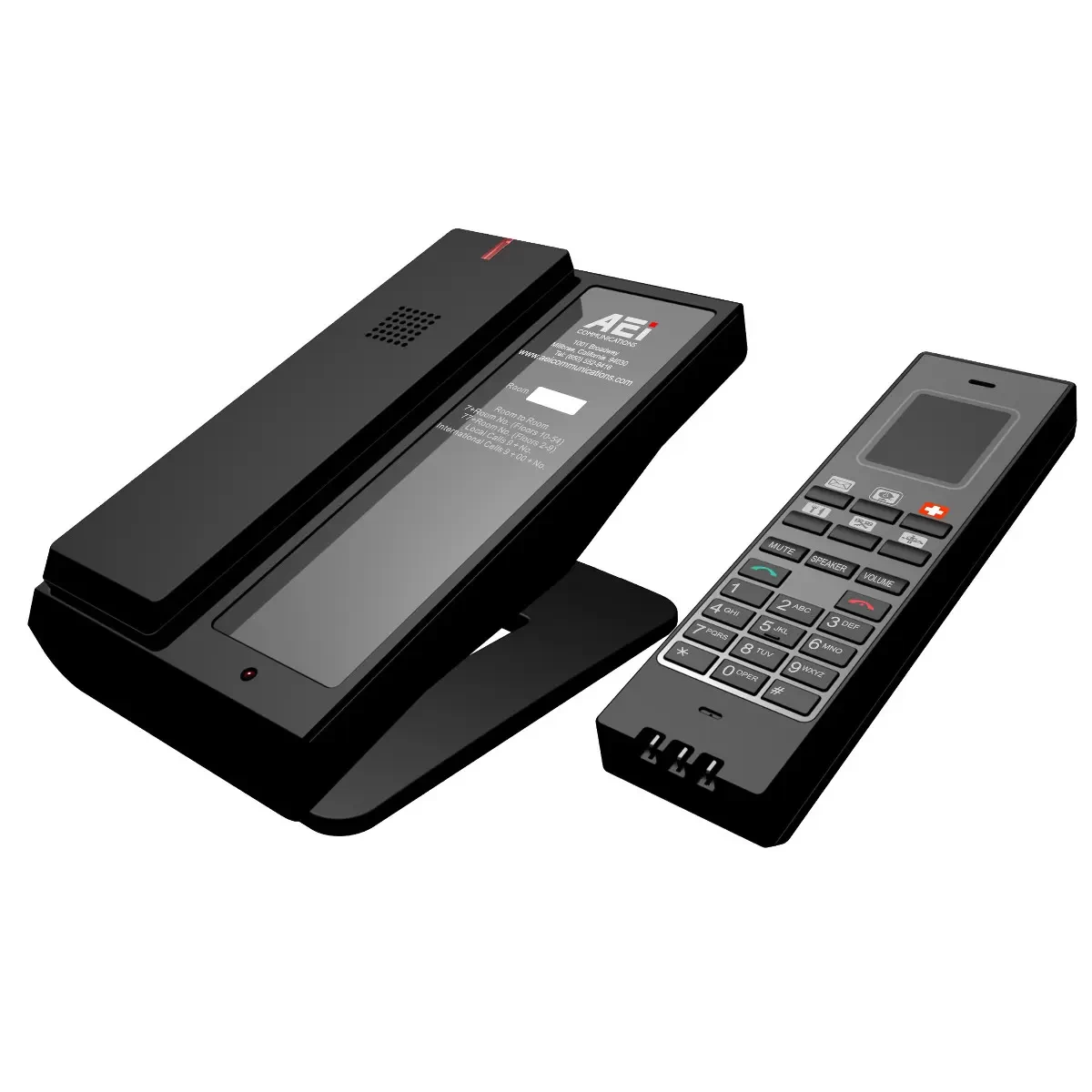

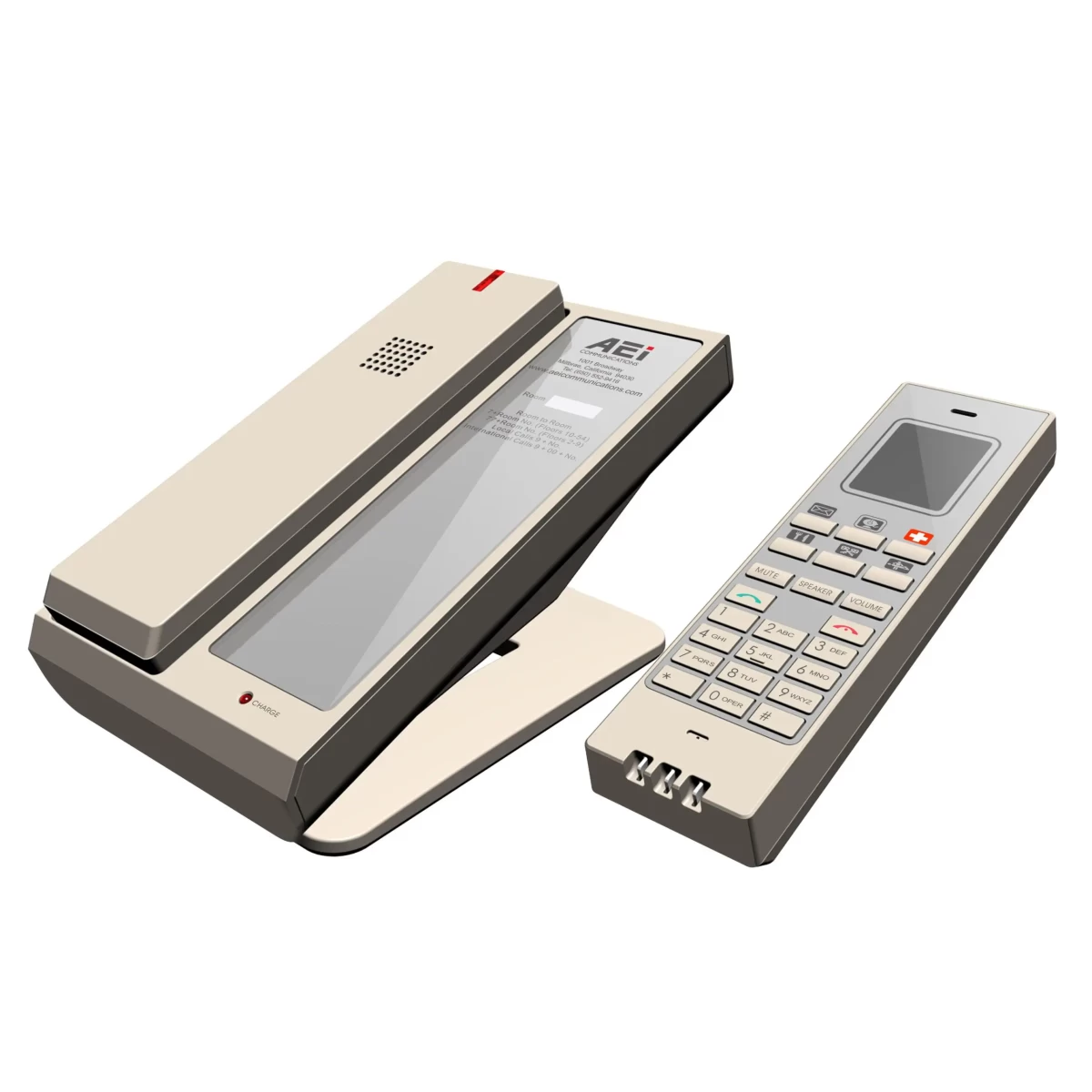

AEI SGR-8106-SMC Single-Line IP Cordless Telephone (master)

AEI SGR-8106-SMC Single-Line IP Cordless Telephone (master)

Product code: SGR-8106-SMC

Single-line VoIP DECT Cordless Speakerphone Handset and Stand-up Charger

Our state-of-the-art IP cordless phone has it all: Compact footprint; the latest IP voice technologies; dual speakerphones; guest service keys on handset and base, and much more!

From the way our trim cordless handset feels in your hand, to the amazingly clear voice quality, the convenient color handset LCD, and more leading-edge features, SGR series IP cordless phones are durable, reliable, and look great in any guest room.

SEND AN ENQUIRY

Description

• Set includes Handset (extension) and Stand-up Charger
• Pairs with SSP-9210-SM, SSP-9110-SM and SGR Master Telephones
• Fully interoperable with all popular hospitality IP PBXs
• The latest DECT technology for crystal clear calls
• Up to six (6) programmable guest service keys on Handset
• Full duplex Handset speakerphone
• Base Supports up to four DECT handsets – perfect for suites!
• Easy management with Web-based admin GUI & auto provisioning
• ADA-compliant volume control

Additional information

Codec
G.711, G.729

Protocol
HTTP/DHCP server
Static / DHCP IP assignment
ToS / VLAN IEEE 802.1 p/q
SRTP protocol is not available in fear of the Eurasian Economic Community

SIP
SIP V2 (RFC3261)

Security
Web authentication for setup
MD5 for SIP authentication
(RFC 2069/ RFC2617)

DTMF
In-Band / Out-of-Band DTMF
(RFC2833) / SIP Info (RFC2976)

Voice Quality
Comfort Noise Generator
Echo canceller: LEC / AEC
Jitter buffer/PLC

Keys
Std. DTMF Dial Pad; Line keys
with red/green LEDs; Hold, Redial,
Message, Volume +/-, Conference,
Mute, Speaker, Speed Dials

Administration
Web GUI configurable
Firmware upgrade via TFTP/HTTP
Auto-provisioning

Power
PoE: IEEE 802.3af compliant
Input: 100 ~ 240 VAC, Output: 5.9V / 1A
(optional)

Indicators & Features
Line Status; Hold; Conference; Mute;
Speaker; Message Waiting; Ringing

Jacks
10/100 RJ45 WAN port x 1
DC jack 6V x 1 (w/wall power option)

DECT Master Standard
DECT/CAT iq2.0 compatible
Radio Frequency Range: 1880 – 1930 MHz
US: 1921.536 (ch0) – 1928.448 MHz (ch4)
EU 1881.792 (ch0) – 1897.344 MHz (ch9)
Channel Spacing: 1728 KHz
Bit rate: 1150 Kbit/s
Modulation: GFSK
Voice coding: 16 Kbit/s
Transmit power: 100 mW
Range (outdoors): 300 m (984 ft.)
Range (indoors): 50 m (164 ft.)

Faceplate
Durable full length custom plastic

Cords
Ethernet cable (10’ std.)

EMI
USA: Part 15B, 15D
Europe: EN 550221

Safety
Europe: EN 60950-1

EMC
Europe: EN 55024; EN61000-3-2
EN61000-3-3; EN61000-4-2
EN61000-4-3; EN61000-4-4
EN61000-4-5; EN61000-4-6

RoHS
Complies with directive 2002/95/EC
RoHS (2005/613/EC)

Temperature
Storage: -10º C to +60º C
Operating: 0º C to +45º C

Colors
Black, Ash (Custom colors on request)

Dimensions
195mm(L)x110mm(W)x50mm(H) (7.68″x4.33″x1.97″)

Weight
560g
