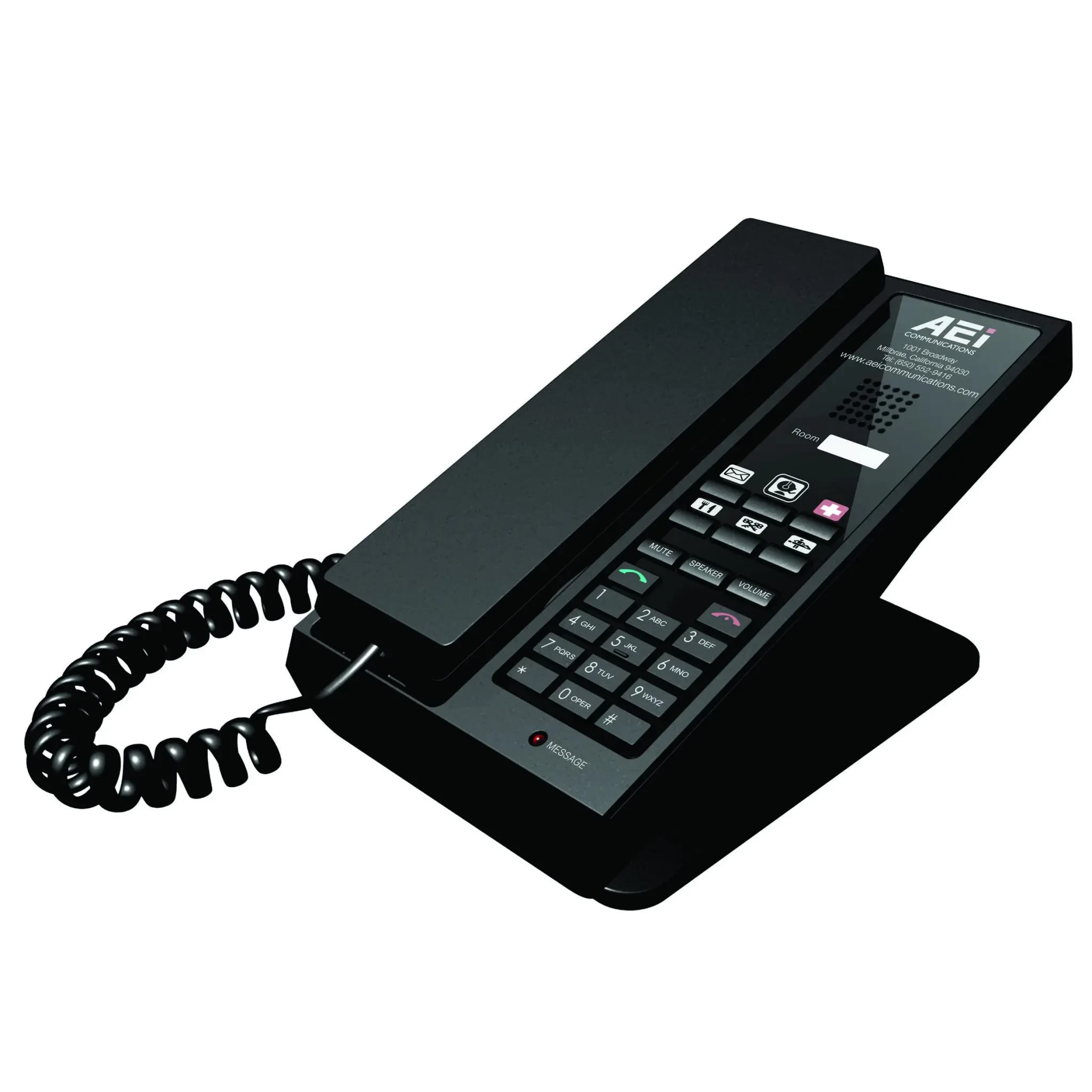

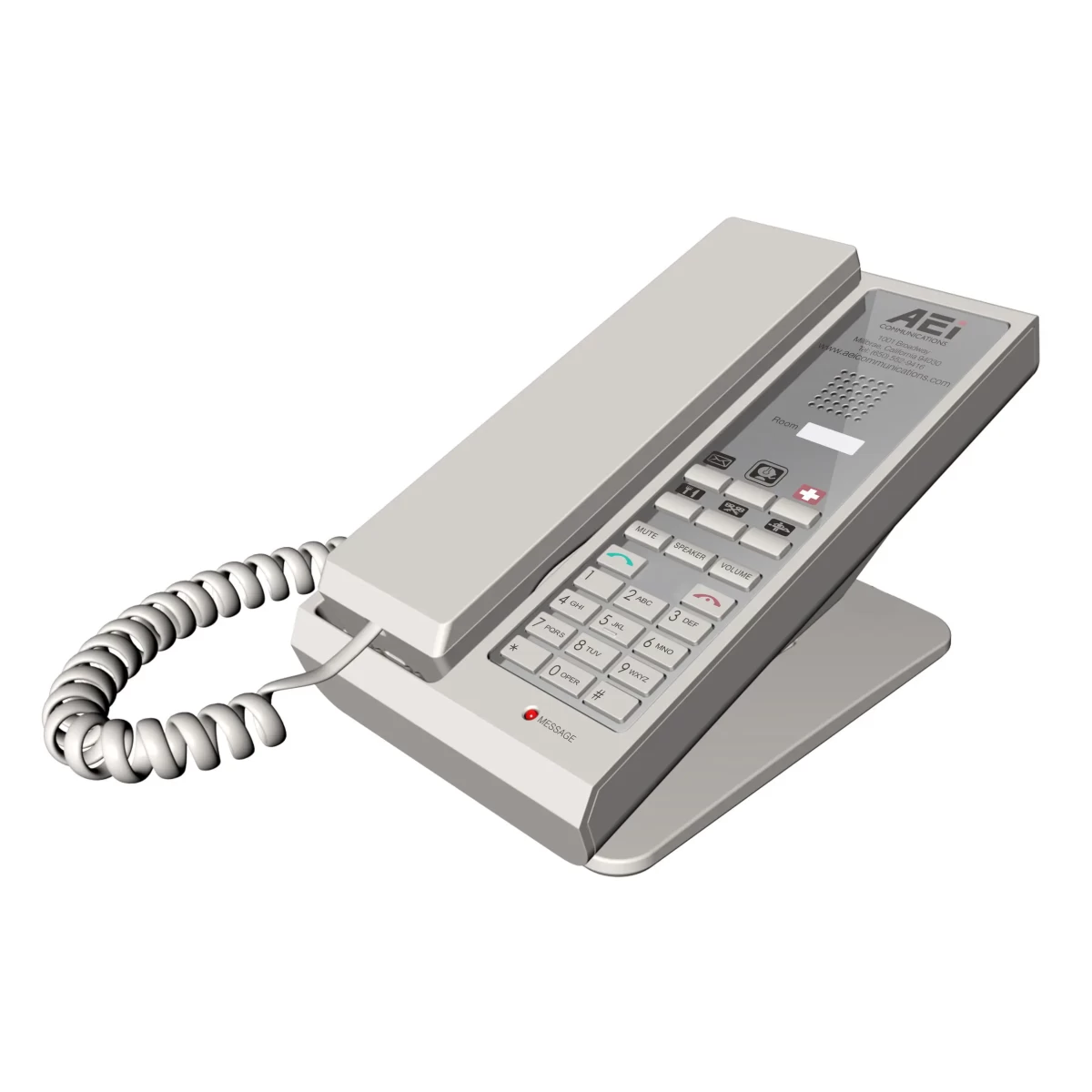

AEI SGR-9106-S Single-Line IP Corded Speakerphone

AEI SGR-9106-S Single-Line IP Corded Speakerphone

Product code: SGR-9106-S

Our SGR series of VoIP phones deliver state-of-the-art IP technologies that enable you to unlock the true value of your IP investment. Deploy the SGR series as a feature-rich corded IP phone with a display. Perfect for saving money on VoIP port licensing fees!

Easier management, greater guest service, and better cost control are at the heart of every one of AEi’s advanced VoIP solutions.

SEND AN ENQUIRY

Description

• Single Line Speakerphone
• Mute,Speaker and Volume Control
• Message Waiting and Ringer Indicator on Base
• Full Duplex Speakerphone
• Up to six (6) programmable guest service keys
• Room Number Displayed on Base
• Unigue Customizable Faceplate
• ADA-compliant volume control
• Easy management with Web-Based GUI & auto-provisioning

Additional information

Codec
G.711

Protocol
HTTP server
Static / DHCP IP assignment
ToS / VLAN IEEE 802.1 p/q
SRTP protocol is not available in fear of the Eurasian Economic Community

SIP
SIP V2 (RFC3261)

Security
Web authentication for setup
MD5 for SIP authentication
(RFC 2069/ RFC2617)

DTMF
In-Band / Out-of-Band DTMF
(RFC2833) / SIP Info (RFC2976)

Voice Quality
Comfort Noise Generator
Echo canceller: LEC / AEC
Jitter buffer/PLC

Keys
Std. DTMF Dial Pad; Line keys
with red/green LEDs;
Message, Volume +/-,
Mute, Speaker, Speed Dials

Administration
Web GUI configurable
Firmware upgrade via TFTP/HTTP
Auto-provisioning

Power
PoE : IEEE 802.3af compliant
AC adaptor: Input: 100 ~ 240 VAC, Output: 5.9V / 1A(optional)

Indicators & Features
Line Status; Mute; Speaker; Message Waiting; Ringing

Jacks
RJ45 10/100 Mbs; LAN port x 1, DC jack x 1, RJ9 Handset jack x 1

Faceplate
Durable full length custom plastic

Cords
Ethernet cable(10’ std.)

EMI
USA: FCC Part 15B
EU: EN55032

Safety
EU: EN60950-1

EMC
EU: EN55024, EC61000-4-4
EN61000-3-2, EC61000-4-5
EN61000-3-3, EC61000-4-6
IEC61000-4-2, EC61000-4-8
IEC61000-4-3, EC61000-4-11

RoHS
Comply with directive 2002/95/EC RoHS (as amended by commission decision 2005/613/EC)

Temperature
Storage: -10º C to +60º C
Operating: +5º C to +35º C

Colors
Black, Ash (Custom colors on request)

Dimensions
193mm(L)x109mm(W)x105mm(H)

Weight
595g

Download Files

SGR-9106-S Datasheet
