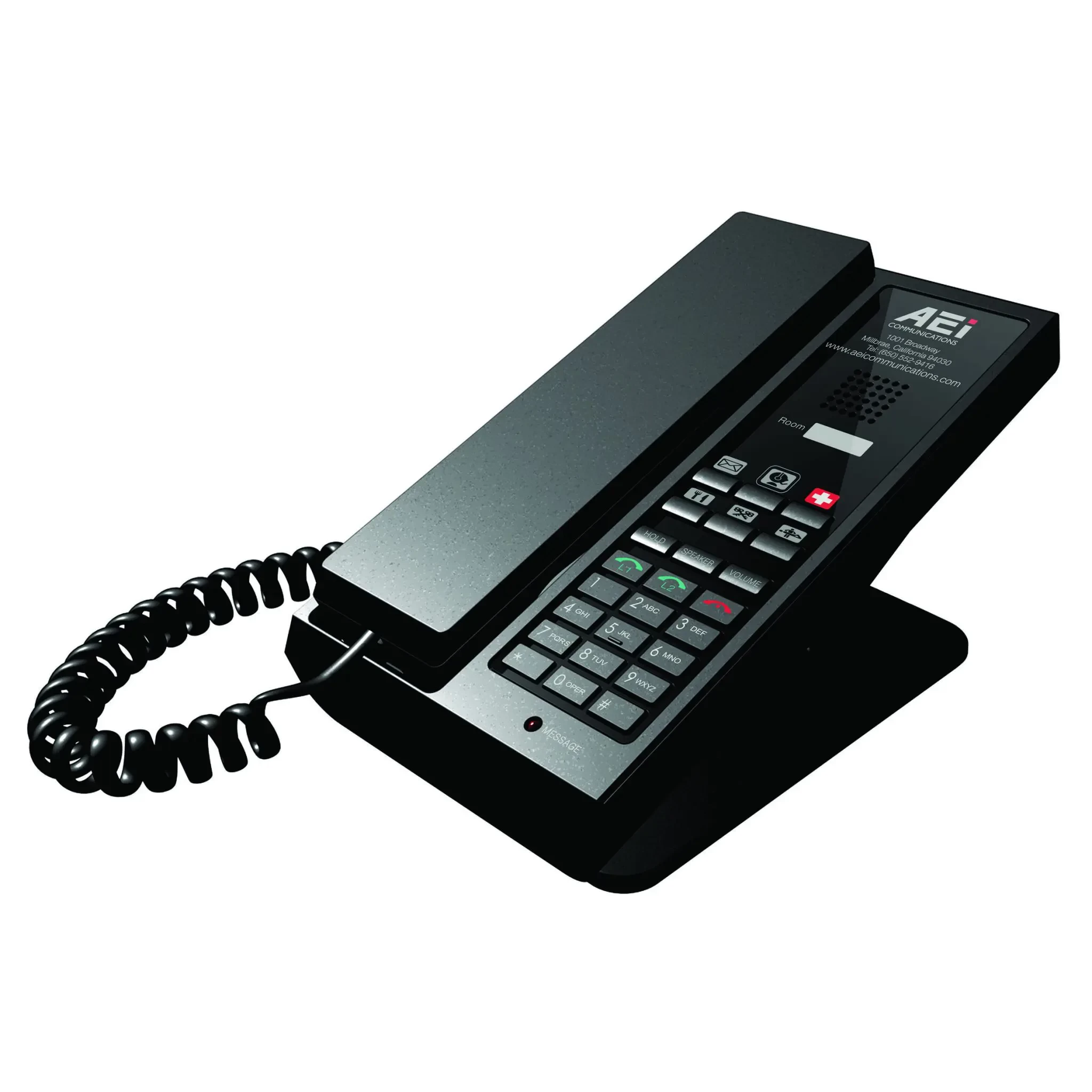

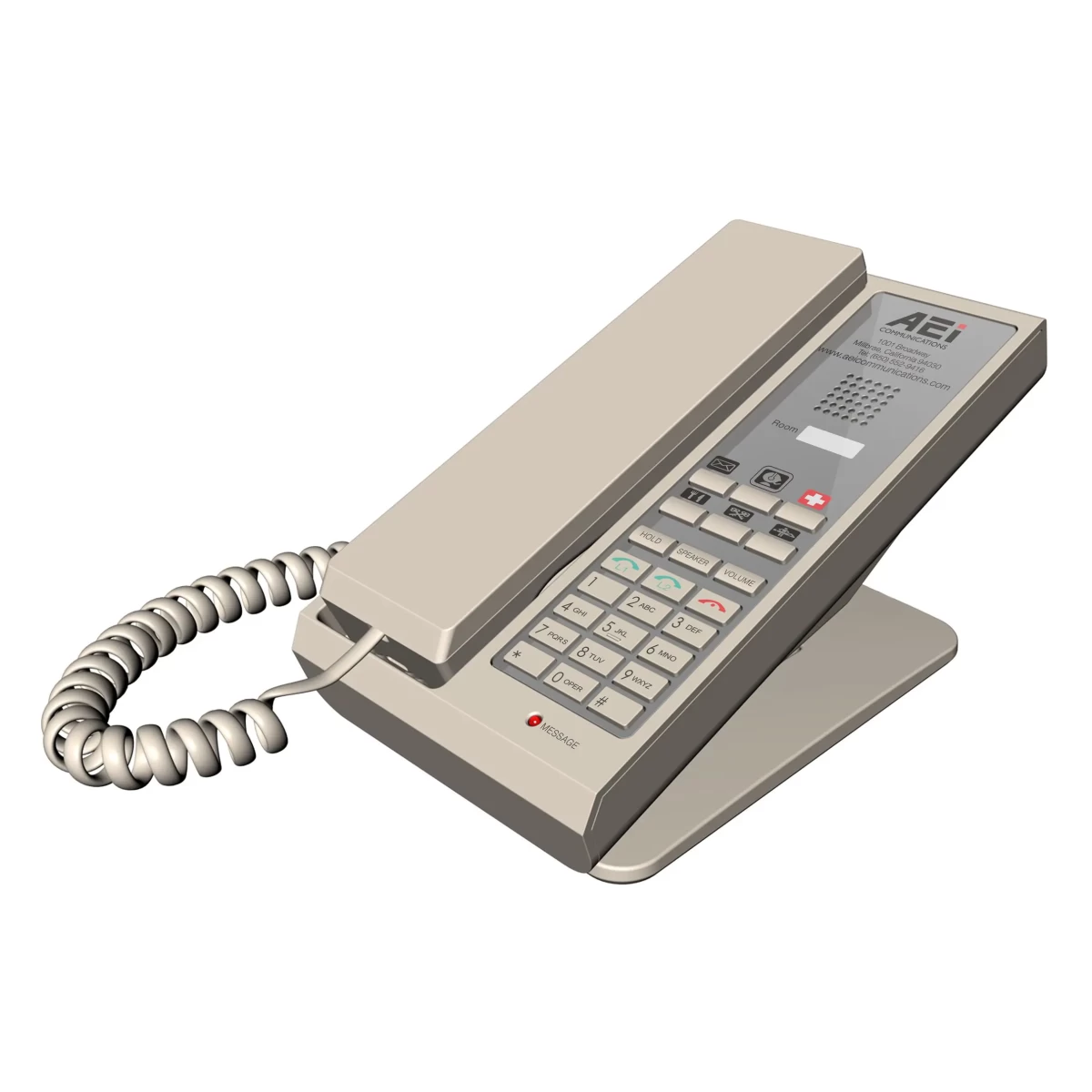

AEI SGR-9206-SM Dual-Line IP Corded Speakerphone (master)

AEI SGR-9206-SM Dual-Line IP Corded Speakerphone (master)

Product code: SGR-9206-SM

Our SGR series of VoIP phones deliver state-of-the-art IP technologies that enable you to unlock the true value of your IP investment. Deploy the SGR series as a feature-rich corded IP phone with a display. Or enable the cordless base functionality to operate DECT handsets off the same base. Perfect for saving money on VoIP port licensing fees!

Easier management, greater guest service, and better cost control are at the heart of every one of AEi’s advanced VoIP solutions.

SEND AN ENQUIRY

Description

• Two Lines Speakerphone
• Controls up to 4 cordless extensions
• Hold,Speaker and Volume Control
• Message Waiting and Ringer Indicator on Base
• Full Duplex Speakerphone
• Up to six (6) programmable guest service keys
• Room Number Displayed on Base
• Unigue Customizable Faceplate
• ADA-compliant volume control
• Easy management with Web-Based GUI & auto-provisioning

Additional information

Codec
G.711

Protocol
HTTP server
Static / DHCP IP assignment
ToS / VLAN IEEE 802.1 p/q
SRTP protocol is not available in fear of the Eurasian Economic Community

SIP
SIP V2 (RFC3261)

Security
Web authentication for setup
MD5 for SIP authentication
(RFC 2069/ RFC2617)

DTMF
In-Band / Out-of-Band DTMF
(RFC2833) / SIP Info (RFC2976)

Voice Quality
Comfort Noise Generator
Echo canceller: LEC / AEC
Jitter buffer/PLC

Keys
Std. DTMF Dial Pad; Line keys
with red/green LEDs; Hold,
Message, Volume +/-, Speaker, Speed Dials

Administration
Web GUI configurable
Firmware upgrade via TFTP/HTTP
Auto-provisioning

Power
Standard: PoE module: class 0
AC adaptor:
Input: 100 ~ 240 VAC, Output: 5.9V / 1A
(optional)

Indicators & Features
Line Status; Hold; Speaker; Message Waiting; Ringing

Jacks
RJ45 10/100 Mbs; LAN port x 1, DC jack x 1, RJ9 Handset jack x 1

DECT Master Standard
DECT/CAT iq2.0 compatible
Radio Frequency Range: 1880 – 1930 MHz
US: 1921.536 (ch0) – 1928.448 MHz (ch4)
EU 1881.792 (ch0) – 1897.344 MHz (ch9)
Channel Spacing: 1728 KHz
Bit rate: 1150 Kbit/s
Modulation: GFSK
Voice coding: 16 Kbit/s
Transmit power: 100 mW
Range (outdoors): 300 m (984 ft.)
Range (indoors): 50 m (164 ft.)

Faceplate
Durable full length custom plastic

Cords
Ethernet cable(10’ std.)

EMI
USA: Part 15B, 15D
Europe: EN 550221

Safety
Europe: EN 60950-1

EMC
Europe: EN 55024; EN61000-3-2
EN61000-3-3; EN61000-4-2
EN61000-4-3; EN61000-4-4
EN61000-4-5; EN61000-4-6

RoHS
Complies with directive 2002/95/EC
RoHS (2005/613/EC)

Temperature
Storage: -10º C to +60º C
Operating: +5º C to +35º C

Colors
Black, Ash (Custom colors on request)

Dimensions
195mm(L)x110mm(W)x50mm(H) (7.68″x4.33″x1.97″)

Weight
714g
