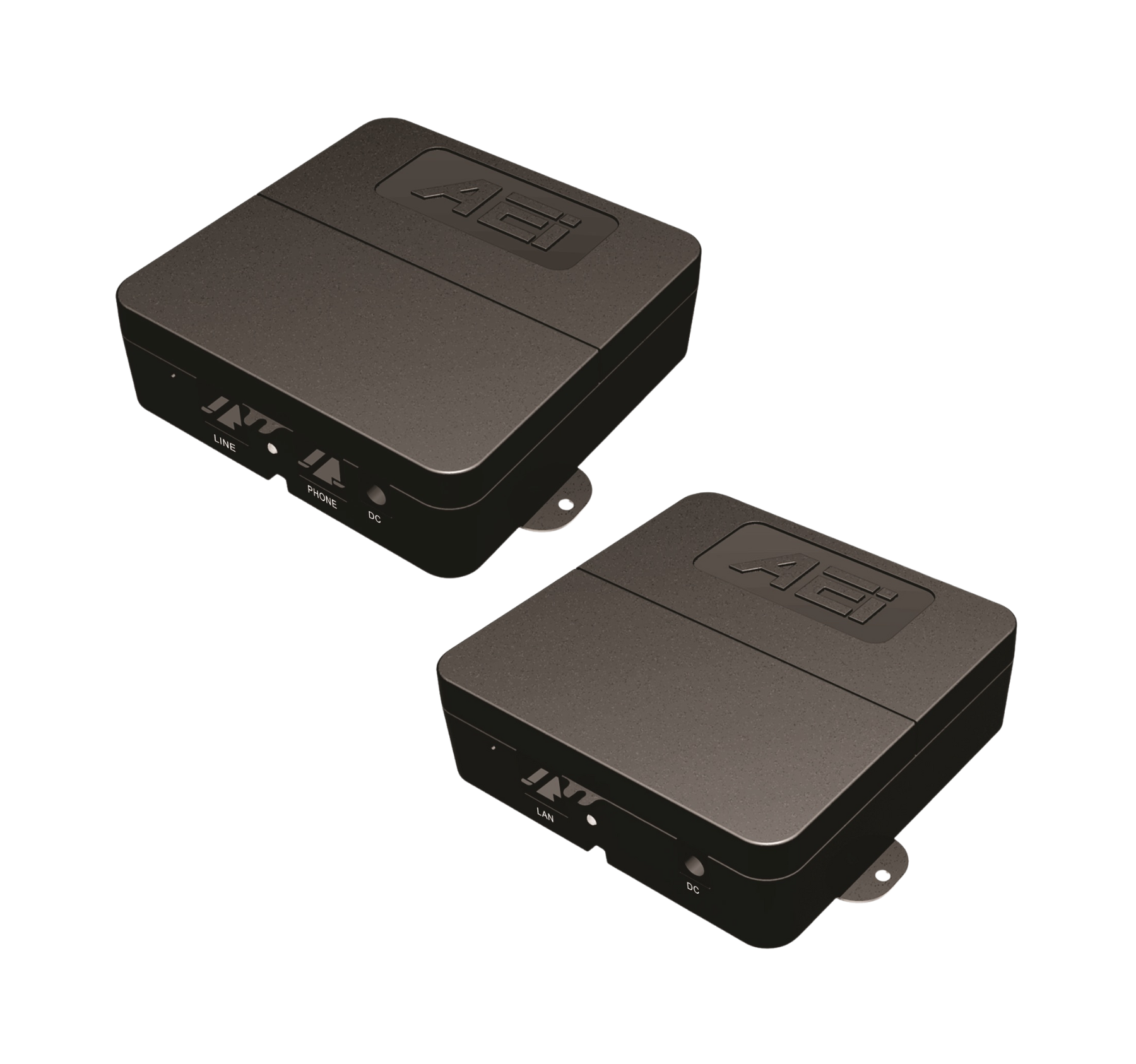

AEI BY-3000-X(A)/BY-3000-X(S) Analog/SIP BYOD Master

AEI BY-3000-X(A)/BY-3000-X(S) Analog/SIP BYOD Master

Product code: BY-3000-X(A)/BY-3000-X(S)

Compact & cost saving new solution to hotels and visitors!

BYOD is a hotel solution with advanced connectivity allow private mobile phones to link with.

This new solution provides the benefits of Hygienic, Mobility and Convenience to all the hotel guests.
Once the guests enter the guestroom and connect their smart phones to BYOD master through WiFi, guests are able to use their smart phone as an extension to call or access the various hotel guest services at anything anywhere in a wide operating zone with stable conversation quality.

SEND AN ENQUIRY

Description

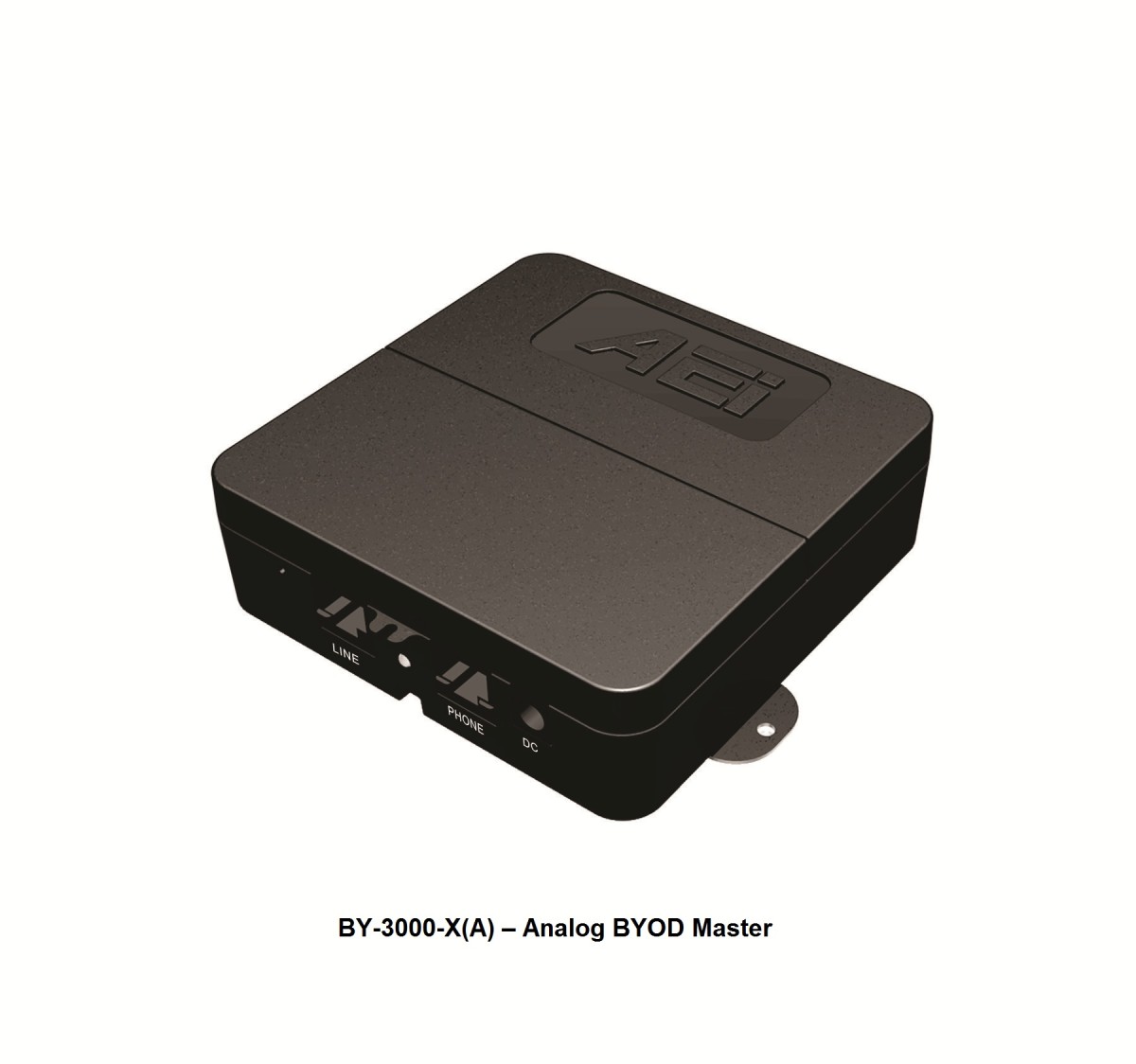

BY-3000-X(A)

• Links with 2 smart phones and 2 AEI Wi-Fi phones
• Connected to existing analog phone
• Extended analog telephony system to Wi-Fi
• Easy Administration firmware upgrade via Wi-Fi

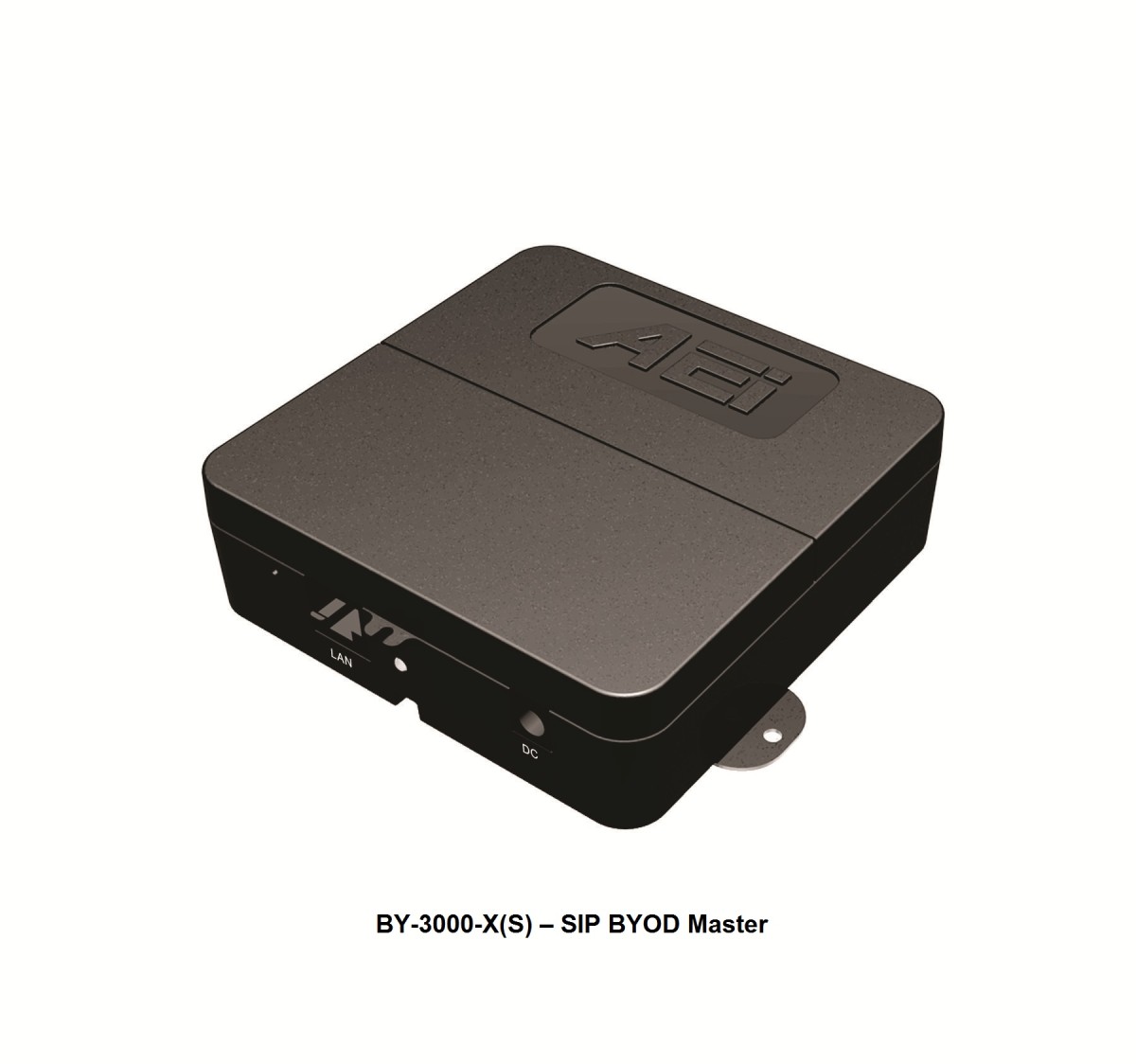

BY-3000-X(S)

• Links with 2 private mobile phones and 2 Wi-Fi extension phones
• Connected to existing SIP phone
• Easy Administration firmware upgrade via Wi-Fi

Additional information

BY-3000-X(A)

Wi-Fi standard
2.4GHz, IEEE 802.11 b/g/n Wi-Fi client

Wi-Fi Encryption
WEP, WPA_PSK, WPA2_PSK, WPA_WPA2_PSK, WPA2_ENTERPRISEEasy Administration
Firmware upgrade via Wi-FiLED Indications
Wi-Fi link indicator

Power
AC adaptor: Input: 100 ~ 240 VAC, Output: 5V / 1.5A

Jacks
RJ11 PSTN jack x 2, DC jack x 1, Reset x 1

Line cable
10 feet x 1

Size and Weight
Dimensions: 113mm(L) x113mm(W) x 36mm(H)
Weight:350g

EMI
USA: FCC Part 15B
FCC Part 15C
EU: EN 300328

Safety
EU: EN 62386-1

EMC
EU: EN301489-1, EN301489-17, EN55024, EN55032

RoHS
Comply with directive 2002/95/EC RoHS (as amended by commission decision 2005/613/EC)

Temperature
Storage:
Low temperature at -10°C
High temperature at +60°C
Operating:
Low temperature at +5°C
High temperature at +35°C

BY-3000-X(S)

Easy Administration
Web GUI
Auto provisioning via TFTP
Firmware upgrade via TFTPCodec
G.711 (a-law, μ-law)

Network Protocol
HTTP server
ToS / VLAN IEEE 802.1 p/q
Static IP, DHCP Client
SRTP protocol is not available in fear of the Eurasian Economic Community

SIP
SIP V2 (RFC3261)

Security
Web login authentication for web setup
MD5 for SIP authentication (RFC2069/ RFC2617)

DTMF
In-Band / Out-of-Band DTMF(RFC2833)

Wi-Fi standard
2.4GHz, IEEE 802.11 b/g/n Wi-Fi client

Wi-Fi Encryption
WEP, WPA_PSK, WPA2_PSK, WPA_WPA2_PSK, WPA2_ENTERPRISE

LED Indications
Wi-Fi link indicator

Power
AC adaptor: Input: 100 ~ 240 VAC, Output: 5.9V / 1A

Jacks
RJ45 10/100 Mbs; LAN port x 1, DC jack x 1, Reset x 1

Ethernet cable
9 feet x 1

Size and Weight
Dimensions: 113mm(L) x113mm(W) x 36mm(H)
Weight:350g

EMI
USA: FCC Part 15B, FCC Part 15C
EU: EN 300328

Safety
EU: EN 62386-1

EMC
EU: EN301489-1, EN301489-17, EN55024, EN55032

RoHS
Comply with directive 2002/95/EC RoHS (as amended by commission decision 2005/613/EC)
