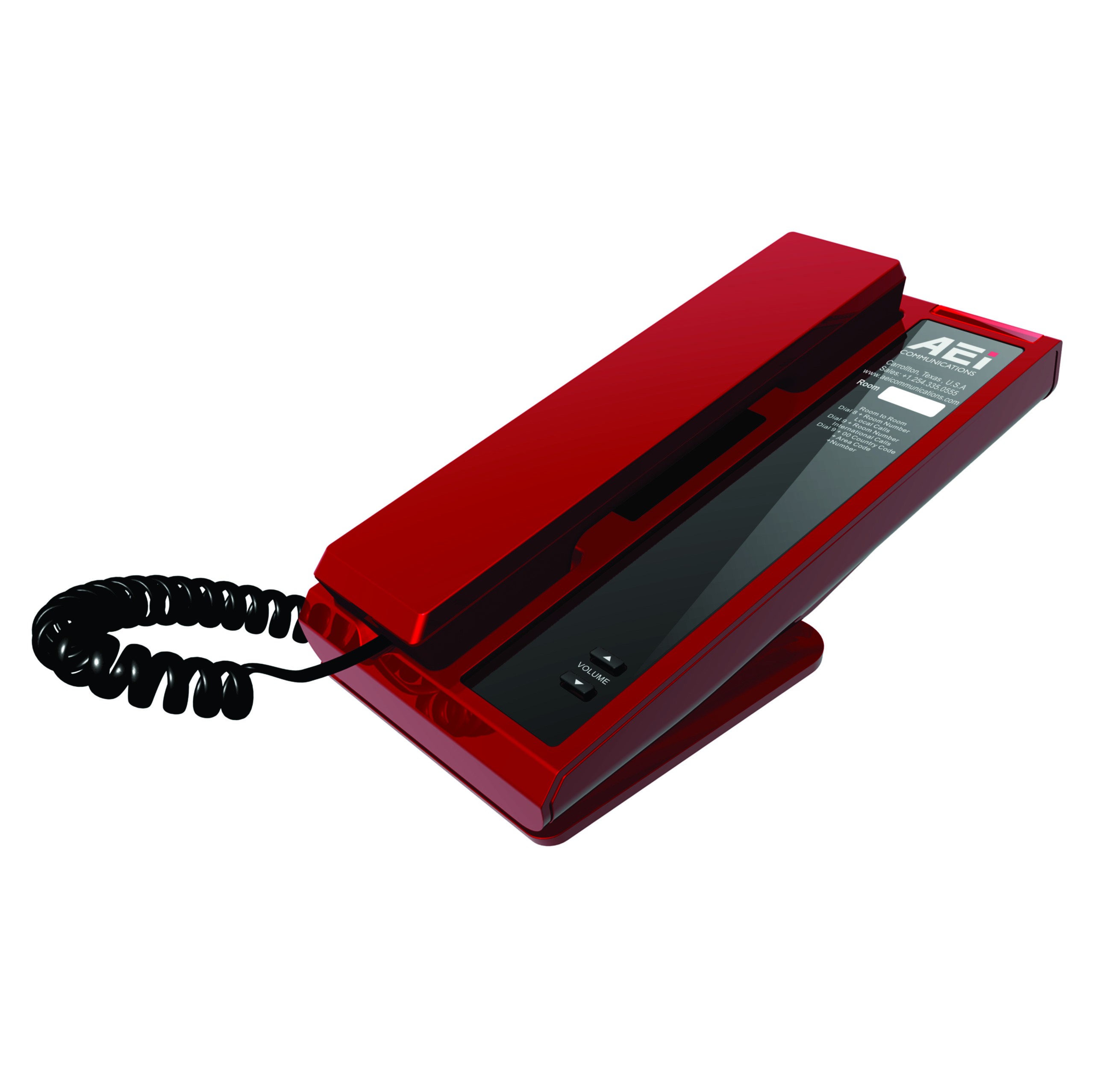

AEI ALN-5100/SLN-1100 (Emergency) Slim Single-Line Analog/IP Corded Telephone

Product code: ALN-5100/SLN-1100 (Emergency)
  • ALN-5100 (Emergency): Slim Single-Line Analog Corded Telephone
  • SLN-1100 (Emergency): Slim Single-Line IP Corded Telephone

This single-line phone is perfect when space is tight, or you don’t need too many services or functions. The elegant design and compact footprint of the ALN/SLN series make it perfect for elevator lobbies and other public spaces, as well as guest rooms in limited-service properties, or as additional phones in suites.

It’s desk or wall mountable for great flexibility. The ALN/SLN series is a perfect way to round out your offering!

SEND AN ENQUIRY

Description

• Single line Analog/IP emergency phone
• Message waiting key with indicator
• Customizable hotel logo and service dials (ALN-5100 (Emergency))
• Faceplate with customizable hotel logo (SLN-1100 (Emergency))

Additional information

ALN-5100 (Emergency)

Color
Red

Finish
Textured

Faceplate
Customizable Faceplate 200mm x 37mm

Power
Line Power; 24V to 56V

Signaling
Standard DTMF

Flash Timing
600ms and 300ms

Ring Equivalence
Z

Handset
Hearing Aid Compatible

Jacks
RJ11 PSTN Jack and RJ9 Handset Jack


Cords
Line Cord : 10 feet x 1

Dimensions
224mm(L)x108mm(W)x128mm(H)

Weight
745g

PSTN
USA: Part 68
EU: TBR 21

EMI
USA: FCC Part 15B
EU:
EN55032,EN55024
EN60950-1

RoHS
Comply with directive 2002/95/EC RoHS (as amended by commission decision 2005/613/EC)

Telecom
TIA/EIA 968-B compliant

Temperature
Storage: -10º C to +60º C
Operating: +5º C to +35º C

SLN-1100 (Emergency)

Power
Adapter: 100-240 VAC Output 5.9V/1A (Optional)
PoE: IEEE 802.3af compliant

Jacks
10/100 RJ45 LAN
RJ9 Handset

Dimensions
224mm(L)x108mm(W)x124mm(H)

Weight
770g

Easy Administration
GUI
Firmware Upgrade via Web
Auto Provisioning
IP Address auto announcement from Handset

Codec
G.711 (a-law, μ-law)

Network Protocol
HTTP server
ToS / VLAN IEEE 802.1 p/q
Static IP, DHCP Client
SRTP protocol is not available in fear of the Eurasian Economic Community

SIP
SIP V2 (RFC3261)

Security
Web Login authentication for web setup
MD5 for SIP authentication (RFC2069/ RFC2617)

Voice Quality
CNG: Comfortable noise generator
Echo canceller: LEC / AEC
Jitter buffer/PLC

EMI
USA: FCC Part 15B
EU: EN55032

Safety
EU: EN60950-1

EMC
EU:
EN55024, EC61000-4-4,
EN61000-3-2, EC61000-4-5.
EN61000-3-3, EC61000-4-6,
IEC61000-4-2,EC61000-4-8
IEC61000-4-3,EC61000-4-11

RoHS
Comply with directive 2002/95/EC RoHS (as amended by commission decision 2005/613/EC)

Temperature
Storage: -10C to +60C
Operating: +5C to +35C
