AEI VR-3100-SBU(S) 3.5 inch Touch Screen Wifi handset phone

AEI VR-3100-SBU(S) 3.5 inch Touch Screen Wifi handset phone

Product code: VR-3100-SBU(S)

Beauty,functionality and cost saving . What more could you need ?

This new additional of the AEi WiFi phone is truly unique in the industry. The unique touch screen interface is incredibly intuitive.

This superb new fully scalable pure WiFi phone from AEi provides great aesthetics ,excellent voice quality and a powerful feature set. It’s part of our new generation of intelligent WiFi phones . No need for expensive cabling .Guests can use this phone anywhere in the hotel where is a WiFi connection .

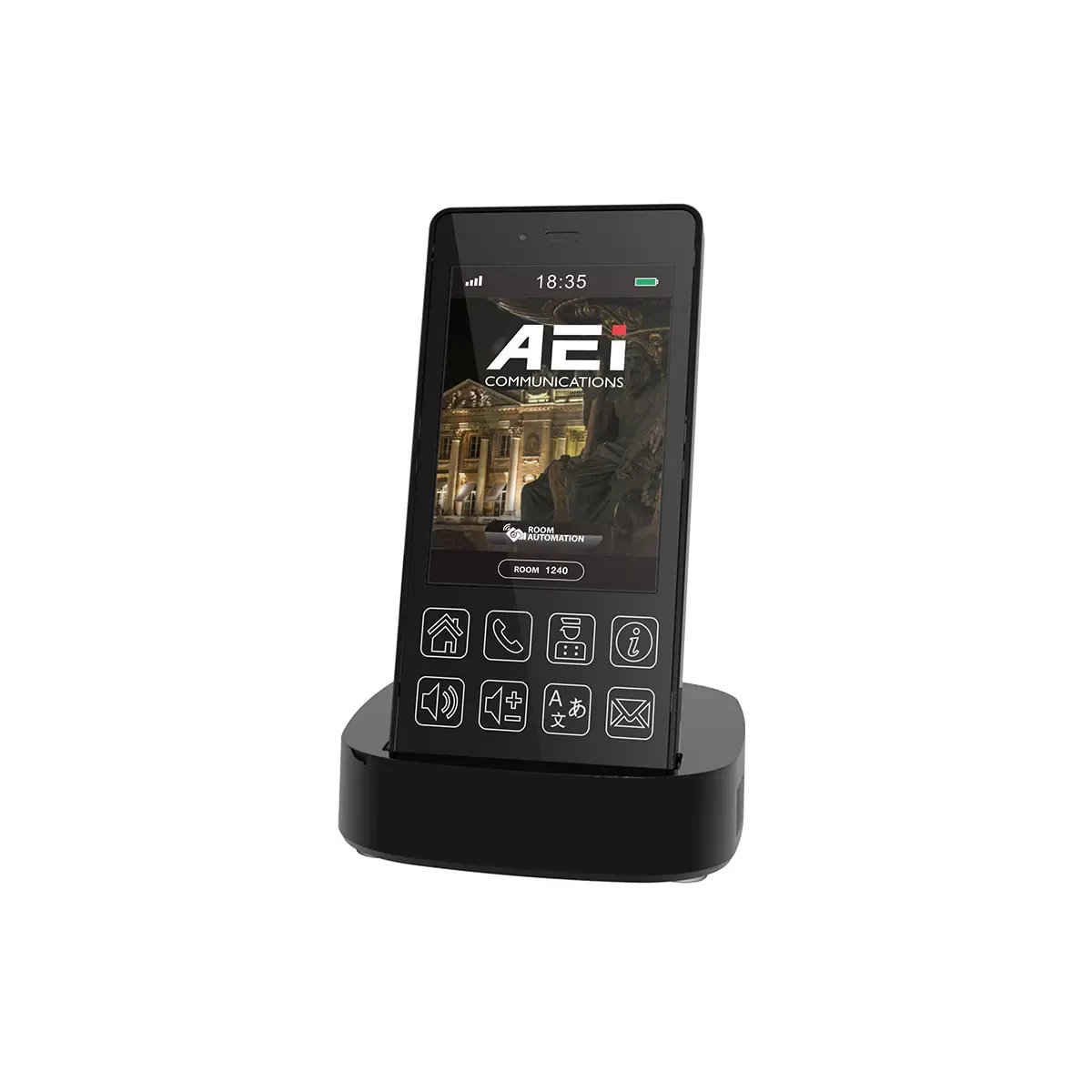

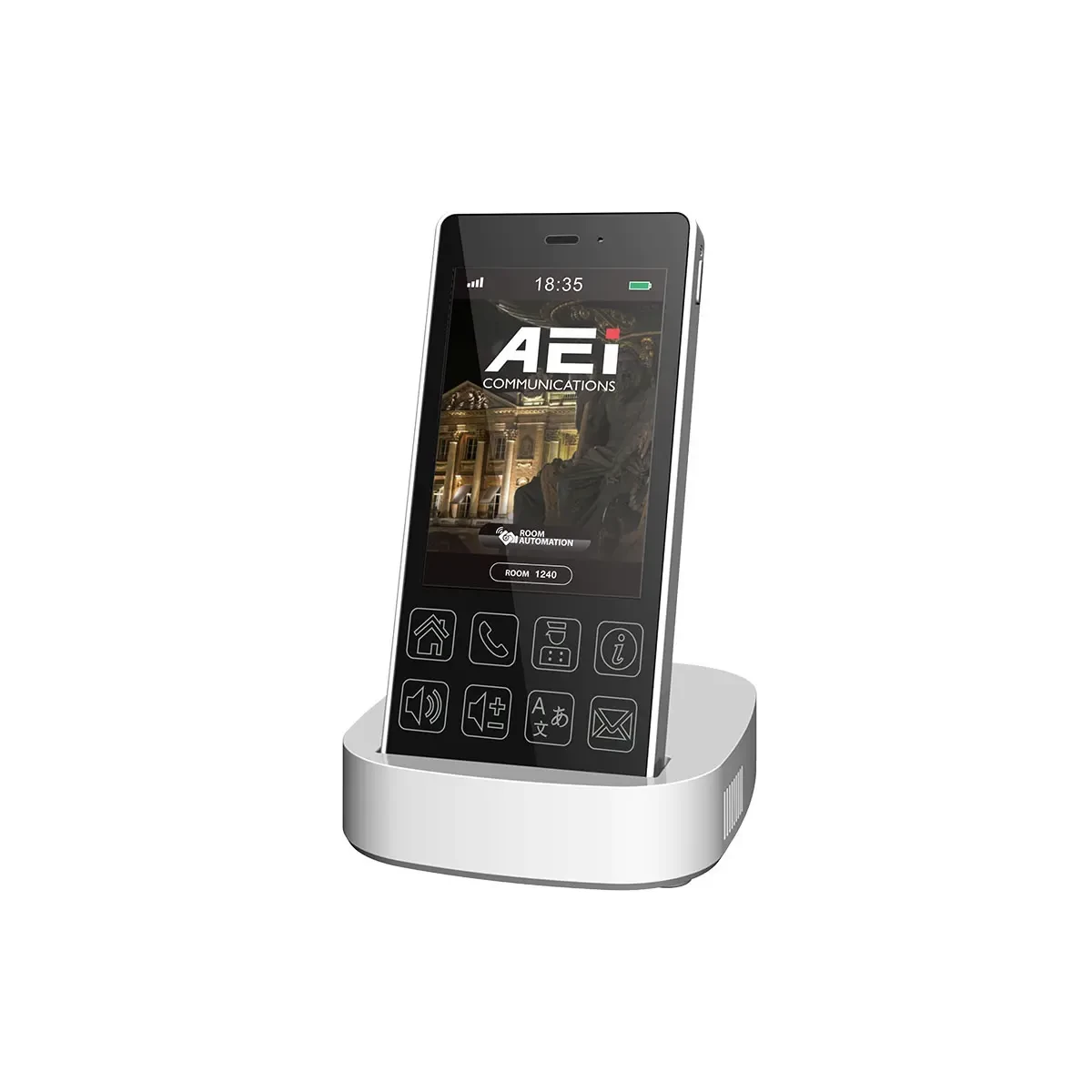

It comes with a desktop mount charging base.

SEND AN ENQUIRY

Description

• 3.5 inch capacitive touch screen
• Set includes Base and Wifi Handset (extension)
• Fully interoperable with all popular hospitality IP PBXs
• Color LCD on Handset
• Multiple language support
• Custiomizable hotel logo and servcie dials
• Two USB charges

Additional information

Features Keys
8 fixed touchable key with white back light . 4 screen feature keys and 4 function keysPhone Features
Date and Time

Display Contents
Home page ,Dialing page ,Service page and Instructions

Display
3.5″ TFT Colro 320×480 Capacitive touch screen.

Wi-Fi standard
2.4GHz, IEEE 802.1 b/g/n Wi-Fi client

Wi-Fi Encryption
WEP, WPA_PSK, WPA2_PSK, WPA_WPA2_PSK, WPA2_ENTERPRISE

Codec
G.711u/a

Network Protocols
DHCP
SRTP protocol is not available in fear of the Eurasian Economic Community

SIP
SIP V2 (RFC3261)

Security
MD5 for SIP authentication (RFC 2069/ RDC2617)

DTMF
In-Band / Out-of-Band DTMF(RFC2833) / SIP Info (RFC2976)

Voice Quality
CNG: Comfortable noise generator
Echo canceller: LEC / AEC
Jitter buffer/PLC

Tones
Ring back tone (local), Busy tone

Colors
Black, White (Custom colors on request)Power
3.7V/900mAh Li-ion battery (Handset)
AC Adaptor : Input: 100 ~ 240 VAC, Output: 5V / 3A (Base)

Contact Pins
2 contact pins for charging

Standby time
30 hours

Talking time
2.5 hours

Dimensions
134mm(L)x61.5mm(W)x13mm(H) (Handset)105mm(L)x91.5mm(W)x23mm(H) (Base)

Jack
DC jack x 1, USB type A x 2

EMI
USA: FCC Part 15B, FCC Part 15C
Europe: EN 300328

Safety
EN 60950-1, EN 301489-1

EMC
EN301489-17

RoHS
Comply with directive 2002/95/EC RoHS (as amended by commission decision 2005/613/EC)

Temperature
Storage: -10º C to +60º C
Operating: +5º C to +35º C
