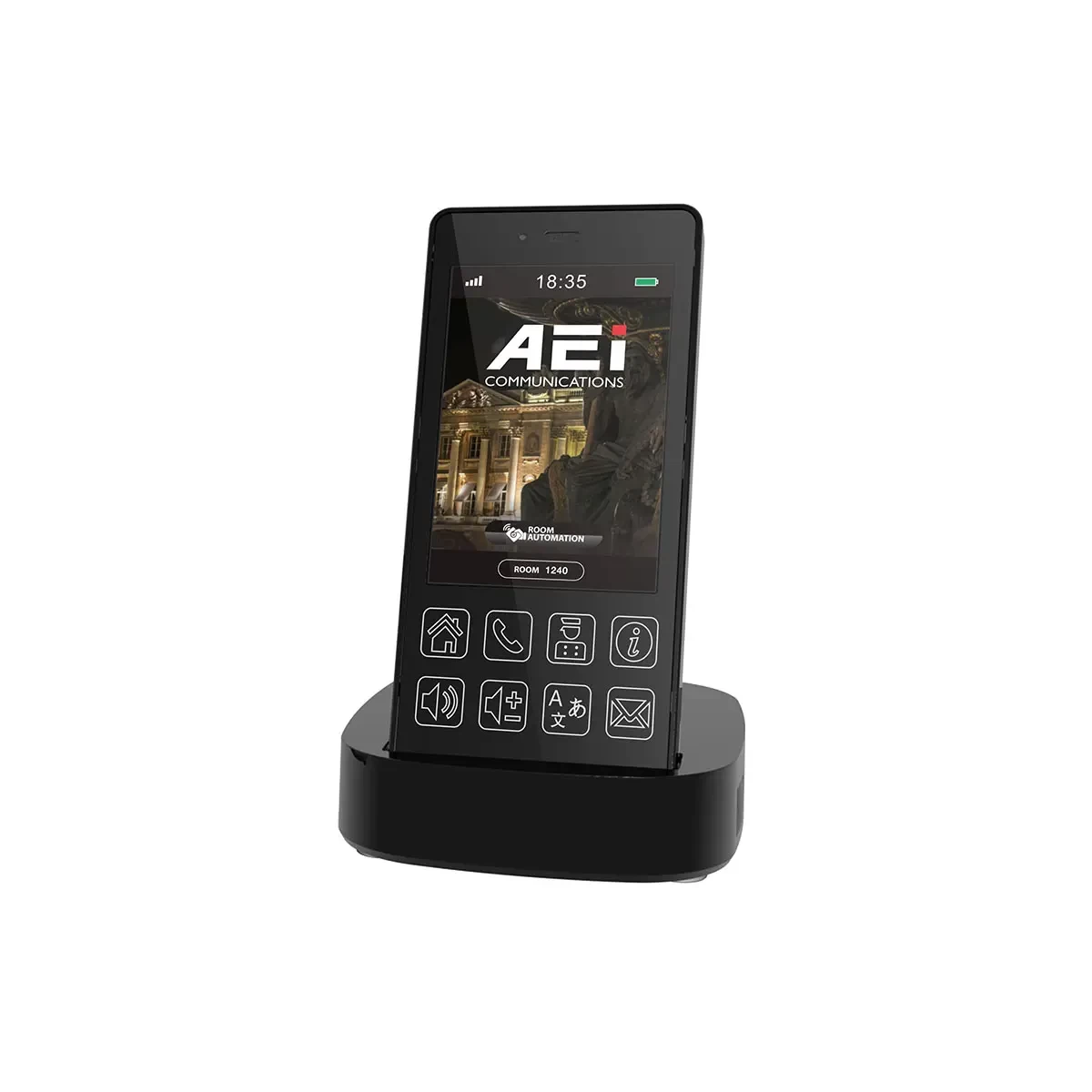

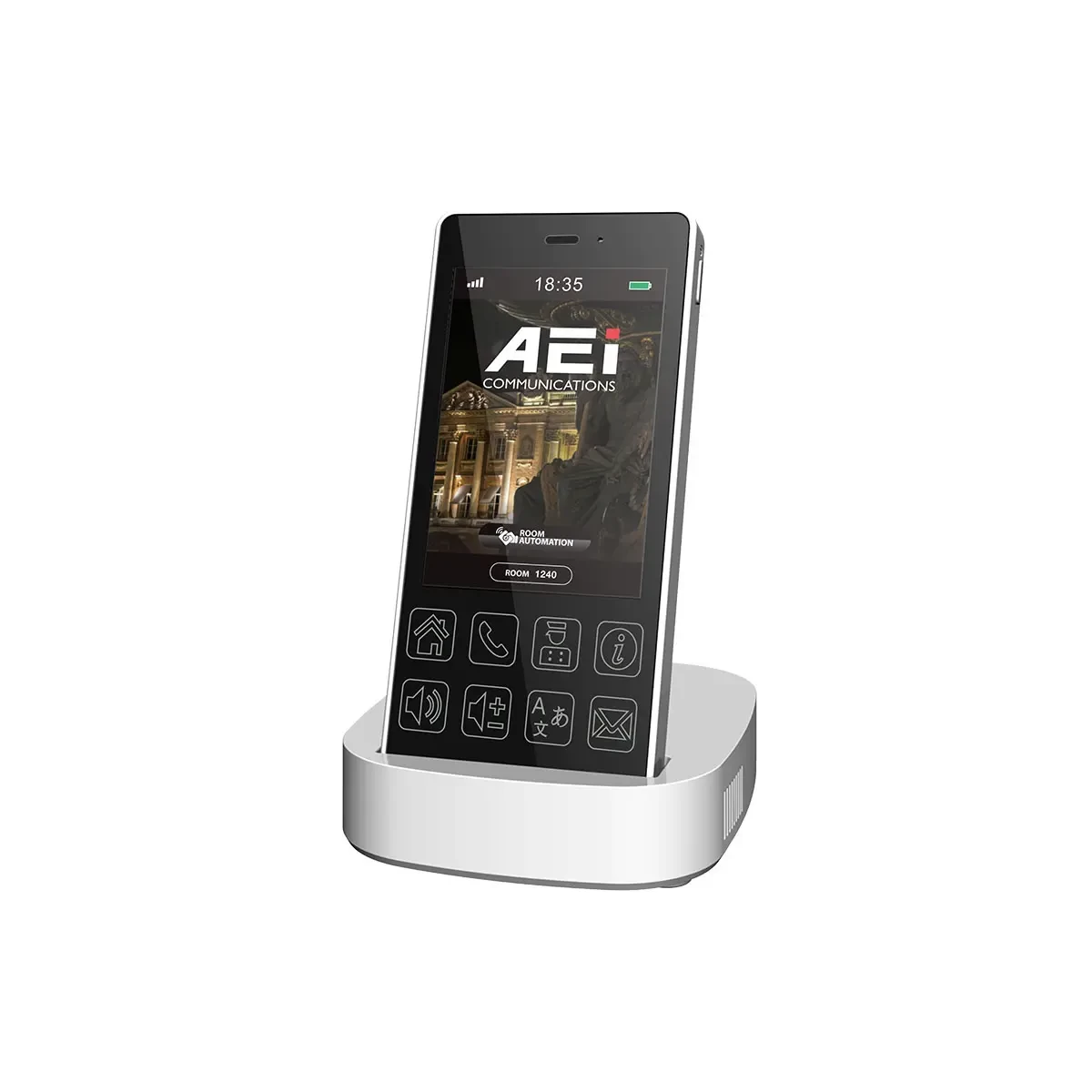

AEI VR-8x00-SMB(S)/VR-8x00-SPBU 3.5 inch Touch Screen DECT handset phone

AEI VR-8x00-SMB(S)/VR-8x00-SPBU 3.5 inch Touch Screen DECT handset phone

Product code: VR-8x00-SMB(S)/VR-8x00-SPBU

Beauty, functionality and cost savings. What more could you need?

This new addition to the AEi DECT accessory phones range is truly unique to the industry.

The tiny form factor full touch screen phone offers all the functionality you’d expect from a full size desk speaker phone and can be paired with any of our DECT master phones, whether IP or analogue.

This amazing new model also offers so much more. It provides an interface for in-room automation so that all room automation such as curtains, lights, air conditioning etc can all be operated from the phone, thus representing great cost saving opportunities for hotels.

SEND AN ENQUIRY

Description

• 3.5 inch capacitive touch screen
• Set includes Base (master) and DECT Handset (extension)
• Fully interoperable with all popular hospitality IP PBXs
• Color LCD on Handset
• Supports up to four DECT handsets – perfect for suites!
• Multiple language support
• Customizable hotel logo and servcie dials

Additional information

Features Keys
8 fixed touchable key with white back light . 4 screen feature keys and 4 function keys

Display Contents
Home page ,Dialing page ,Service page and Instructions

Phone Features
Multiple languages support ( up to 5 languages) ,customization main page and service dials

RF Standard
DECT / CAT iq 1.0 compatible Frequency
Range
1880-1930 Mhz

EU band
1881.792 (ch0) – 1897.334 (ch9) 10 Channels

US band
1921.536 (ch0) – 1928.448 (ch4) 5 Channels

Channel spacing
1728 Khz

Bit rate
1150 Kbit/sec

Modulation
GFSK

Voice coding
16 Kbits/sec

RF power
7dBm

Display
3.5″ TFT Colro 320×480 Capacitive touch display.

Power
3.7v/900mAh Li-ion battery

Standby time
30 hours

Talking time
2.5 hours

Colors
Black, White (Custom colors on request)

Power
3.7V/900mAh Li-ion battery (Handset)AC Adaptor
Input: 100 ~ 240 VAC, Output: 5V / 3A (Base)

Contact Pins
3 contact pins for charging

Dimensions
134mm(L)x61.5mm(W)x13mm(H) (Handset)105mm(L)x91.5mm(W)x23mm(H) (Base)

Jack
DC Jack x1 , One or Two USB ( option non)

Regulatory
RF
USA: Part 15D
Europe: EN 301406

EMI
USA: Part 15B
Europe: EN 300328/EN300386

SAR
EN 62479

Safety
EN 60950-1

EMC
EN 301489-1/6;EN301489-17

RoHS
Complies with directive 2002/95/EC
RoHS (2005/613/EC)

Temperature
Storage: -10º C to +60º C
Operating: +5º C to +35º C
